Outdoor Waterproof Neon Signs
— Factory-Direct LED Neon Sign Manufacturer
Factory-direct outdoor LED neon signs built for rain, sun and temperature swings. 8 mm acrylic, CNC-carved groove, SMD 2835 LED and a silicone-sealed diffuser — IP65 to IP68, UV-stable, and bright enough to read in daylight.
What Is an Outdoor Neon Sign?
An outdoor neon sign — also searched as outdoor LED neon signs, exterior neon signs and waterproof neon signs — is a custom LED light sign engineered to live outside: rain-proof, UV-stable and bright enough to read in daylight. Ours is CNC-routed into an 8 mm acrylic panel and sealed with a silicone diffuser, so there is no glass to shatter and no flex tube to degrade in the sun.
Why Outdoor LED Neon
- Weatherproof — sealed to IP65–68, survives rain, snow and hose-downs.
- UV-stable — cast acrylic and silicone resist yellowing and cracking.
- Daylight-bright — SMD 2835 strips read clearly against sunlight.
- No glass, no gas — nothing to shatter or leak; runs on low-voltage DC.
- Low power, long life — a few watts per metre, 50,000+ hour rated lifespan.
Outdoor Neon Sign Specifications
| Parameter | Specification |
|---|---|
| Panel material | 8 mm cast PMMA acrylic (UV-stable) |
| Construction | CNC-carved groove + seated LED strip |
| LED type | SMD 2835, 3000–6500 K |
| Diffuser / seal | Silicone strip (seals + diffuses) |
| Waterproofing | IP65 / IP66 / IP67 / IP68 |
| Working voltage | AC 110-220 V input (Class 2 driver) · 12 V / 24 V DC output |
| Lifespan | 50,000+ hours (LM-80 rated LED) |
| Colour options | Single / CCT / RGB / RGBW / RGBIC |
| Certification | CE, RoHS, UL-listed components |
| MOQ | 1 piece (tiered from 5 sets) |
| Production | 3–7 days |
| Warranty | 2 years |

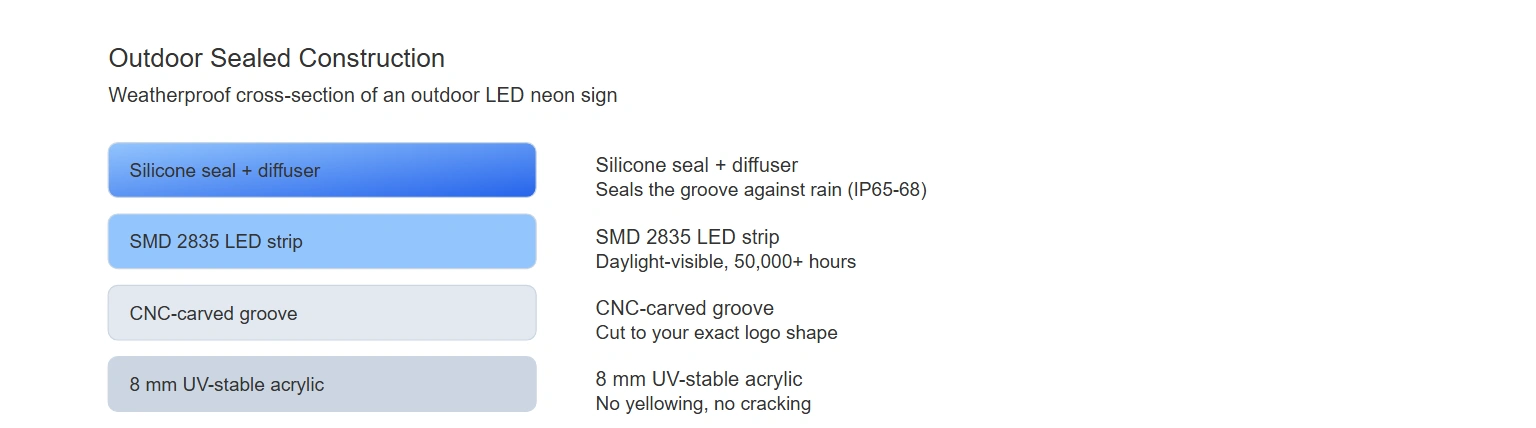

Construction & Materials
Every outdoor neon sign is built the same way: a blank 8 mm acrylic panel, a CNC-carved groove in the shape of your artwork, an SMD 2835 LED strip seated in the groove, and a silicone strip that both diffuses the light and seals the groove against weather. The acrylic is cast PMMA, chosen because it stays clear and does not yellow under years of UV exposure.

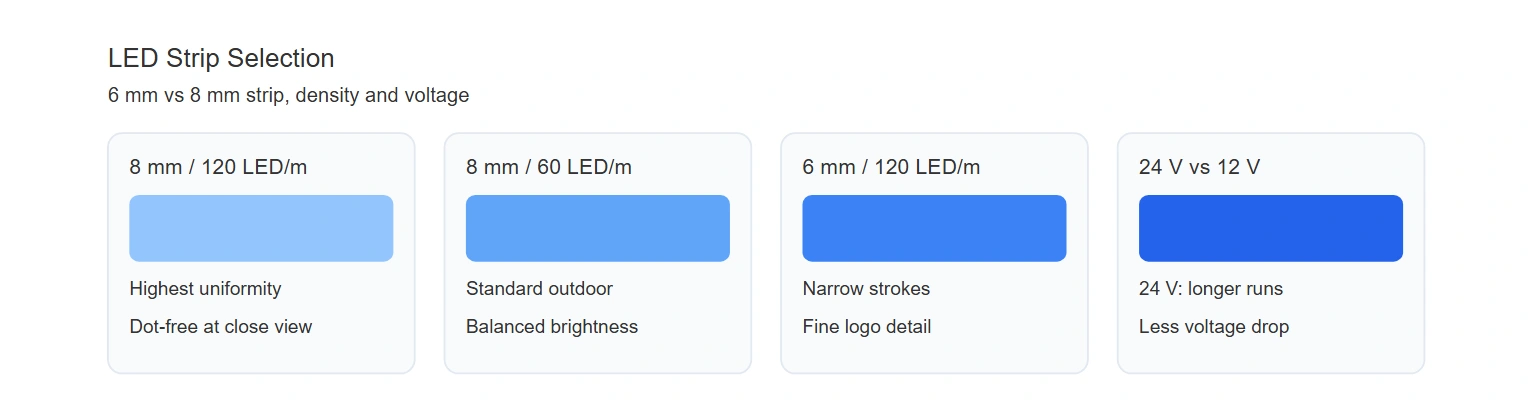

LED Strip Selection Matrix
The light source is a bare SMD 2835 LED strip — the same chip class used in general lighting — selected by strip width, LED density and voltage to balance uniformity against power and cost.
| Option | Best for | Trade-off |
|---|---|---|
| 8 mm / 120 LED/m | Dot-free look at close viewing | Higher power per metre |
| 8 mm / 60 LED/m | Standard outdoor balance | Visible dotting only at very close range |
| 6 mm / 120 LED/m | Narrow strokes, fine logo detail | Less light per metre |
| 24 V over 12 V | Long runs without voltage drop | Slightly higher driver cost |
Optical Engineering — The Dot-Free Look
The dot-free line that separates a professional outdoor sign from a cheap import is an optical decision, not a brightness decision. The silicone diffuser spreads each LED into an unbroken line; 120 LED/m with 8 mm spacing reads as a solid stroke, not a dotted one. Colour rendering matters for brand work: a single-colour or CCT strip reproduces its wavelength or Kelvin point directly, while RGB synthesises colours by mixing three channels.

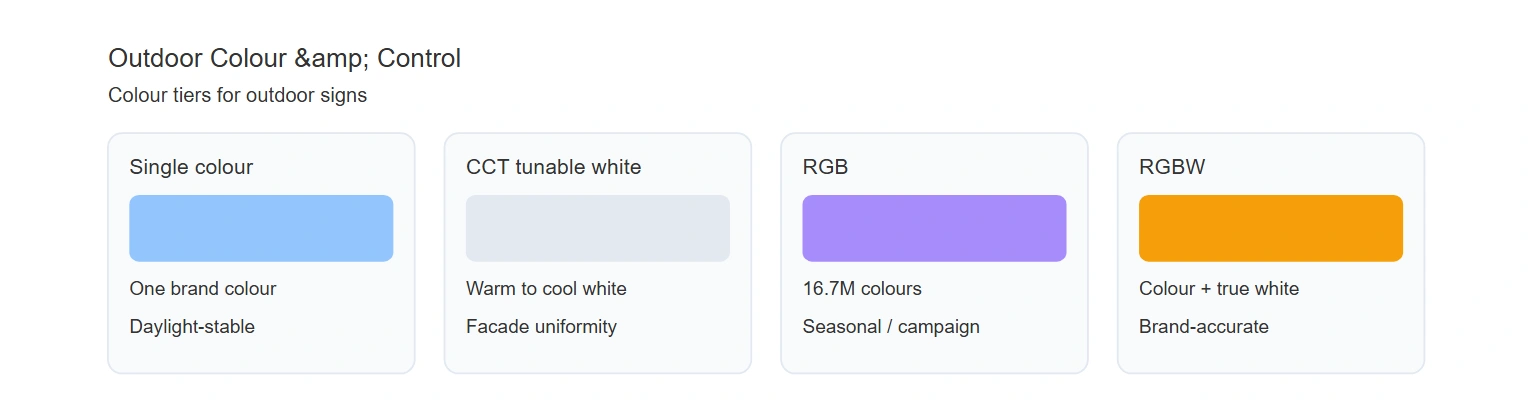

Colour & Control
Most outdoor signs need a single brand colour or a warm white. RGB adds the ability to change colour by season or campaign — but specify the tier before you order, because it changes the driver, the controller and the price.
| Tier | What it does | Control | Typical outdoor use |
|---|---|---|---|
| Single colour | Fixed colour or fixed white | None / inline dimmer | Most facades and wordmarks |
| CCT / tunable white | Adjustable 2700–6500 K white | RF / Wi-Fi / app | Uniform facade lighting |
| RGB | Whole sign changes colour, 16.7M colours | RF / Wi-Fi / DMX | Seasonal or campaign changes |
| RGBW | Colour + dedicated white channel | RF / Wi-Fi / DMX | Brand-accurate colour + true white |
Power & Driver Sizing
Low-voltage LED signs need a correctly sized constant-voltage driver. Undersized drivers cause voltage drop — the far end of a long sign dims — so long outdoor runs are fed from 24 V with power injection points. We specify industrial drivers from Mean Well and similar UL-listed brands, sized at 20% headroom for outdoor temperature swings.

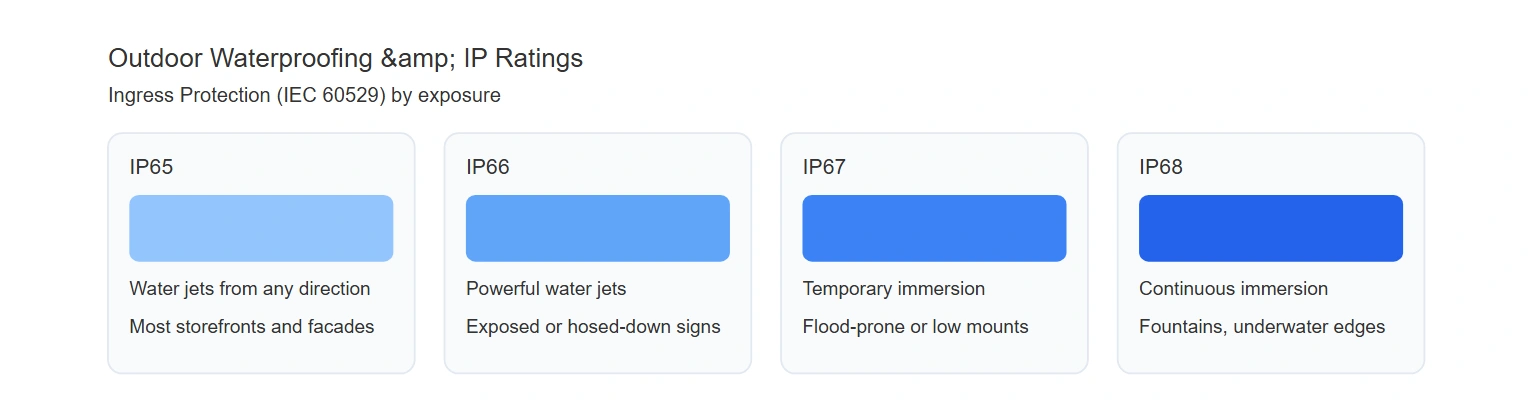

Waterproofing & IP Ratings
An outdoor sign is sealed to an Ingress Protection (IP) rating defined by IEC 60529. Choose the tier by how exposed the sign is — a sheltered storefront needs less than a sign beside a fountain or a hose-down area.
| Rating | Protection | Best for |
|---|---|---|
| IP65 | Water jets from any direction | Most storefronts, facades and patios |
| IP66 | Powerful water jets | Exposed or regularly hosed-down signs |
| IP67 | Temporary immersion (30 min / 1 m) | Flood-prone or low-mounted signs |
| IP68 | Continuous immersion | Fountains and underwater edges |

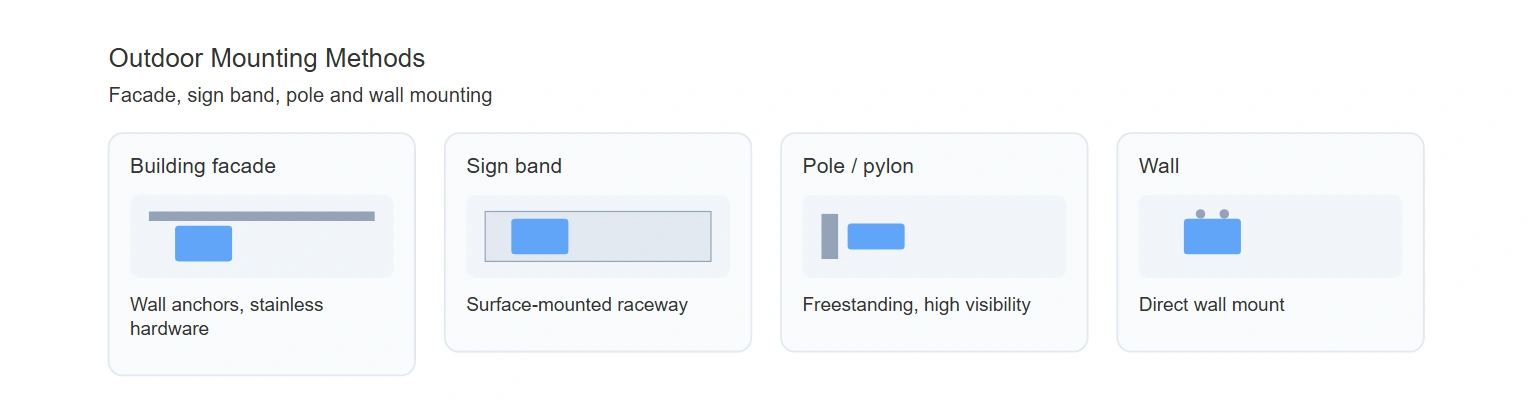

Outdoor Mounting
Outdoor signs mount to building facades, sign bands, poles and walls with stainless hardware and sealed wiring. Mounting is chosen by surface and exposure — stainless anchors for facades, a raceway for sign bands, a freestanding base for poles.

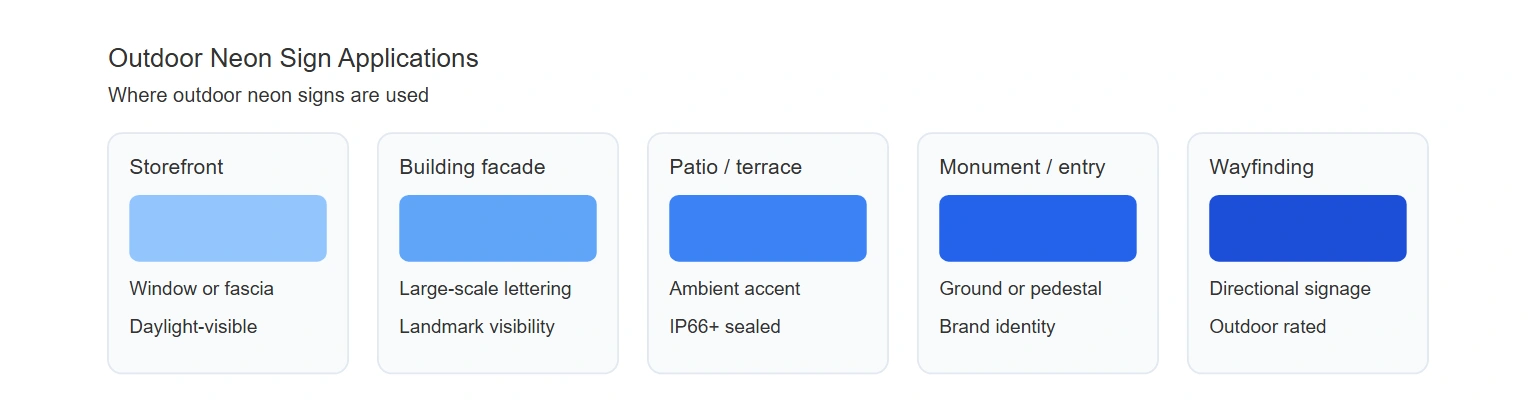

Applications
Outdoor neon signs are used for storefronts, building facades, patios, monument signs and wayfinding — anywhere a brand needs to be seen from the street after dark.
Total Cost of Ownership vs Glass Neon
| Metric | LED neon (ours) | Glass neon |
|---|---|---|
| Operating voltage | 12–24 V DC | 3–18 kV AC |
| Lifespan | 50,000+ hours | ~30,000 hours, gas depletion |
| Energy | Low (a few W/m) | Higher + transformer losses |
| Fragility | Shatterproof | Fragile glass tubes |
| Maintenance | Minimal | Tube / transformer replacement |
Quality Control & Test Methodology
- Ageing test — every sign burns in for 24 hours before packing to catch early LED or driver failure.
- Water test — sealed signs are jet-tested to the ordered IP tier.
- Uniformity check — visual + luminance inspection for hot spots and dotting.
- Electrical test — driver output, ground continuity and leakage current.
Failure Modes & Prevention
| Failure mode | Cause | Prevention |
|---|---|---|
| Water ingress | Broken seal / wrong IP tier | Silicone-sealed groove, correct IP rating |
| UV yellowing | Non-UV-stable acrylic | Cast PMMA, UV-stable silicone |
| Driver failure | Undersized / overheating driver | 20% headroom, UL-listed driver |
| Voltage drop (dim end) | Long run on 12 V | 24 V + power injection |
| LED degradation | Poor thermal / cheap chip | SMD 2835, rated drive current |
Certification & Compliance
Signs are built with CE- and RoHS-compliant components and UL-listed power supplies. Electric signs fall under UL 48; the RoHS Directive restricts hazardous substances, and the CE marking declares conformity for the EU market.
MOQ, Lead Time & Pricing Factors
Pricing is driven by size, IP tier, colour tier and quantity — not by a fixed list. Single signs ship in 3–7 days; volume orders are tiered.
| Quantity | Pricing | Typical lead time |
|---|---|---|
| 1 piece | Single-unit price | 3–7 days |
| 5–100 sets | Tiered | 7–14 days |
| 100+ sets | Wholesale / OEM | 14–30 days |
Production Process & Packaging
Artwork is CNC-routed into the acrylic, the LED strip is seated and sealed, and the sign is wired to its driver. Export orders ship in a plywood crate with foam cut-outs, with the driver and mounting kit packed separately.
Wholesale, OEM, Private Label & Dropship
For sign companies, distributors and Amazon sellers we run OEM and private-label programs: your branding on the box, your manuals, and direct-to-customer fulfilment. Reseller and agency pricing is quoted on volume — we do not publish a public wholesale list.
Supplier Evaluation Checklist
- Is the IP rating stated, and to which standard (IEC 60529)?
- Is the LED chip and density named (SMD 2835, 60/120 per metre)?
- Is the driver UL-listed and sized with headroom?
- Are CE / RoHS / UL certificates available on request?
- Is the acrylic UV-stable (cast PMMA, not extruded)?
- Is MOQ, lead time and warranty written down?
Frequently Asked Questions
Are outdoor neon signs waterproof?
Yes. Outdoor LED neon signs are sealed to an Ingress Protection (IP) rating from IP65 (water jets) to IP68 (continuous immersion). The groove that holds the LED strip is covered by a silicone diffuser that seals it against rain, so a standard outdoor sign needs no extra enclosure.
How long do outdoor neon signs last in sun and rain?
The SMD 2835 LED strip is rated for 50,000+ hours, and the 8 mm cast acrylic plus silicone diffuser are UV-stable, so they resist yellowing and cracking over roughly 10+ years of daily outdoor use.
What size do I need for outdoor viewing distance?
Match size to distance: about 40–80 cm wide for a storefront read from the sidewalk, and 80–150 cm or more for a building facade read from across a street or car park.
Can the sign be installed on a building facade?
Yes. Outdoor signs mount to facades, sign bands, poles and walls with stainless hardware and sealed wiring. We specify the mounting and IP rating for your surface and exposure.
How much does an outdoor neon sign cost?
An outdoor neon sign typically costs between $100 and $500 depending on width, IP rating and colour tier. Volume orders of 5+ receive tiered pricing. Send your logo for a free engineering drawing and an exact quote.
What is the MOQ, and do you support wholesale?
MOQ is 1 piece for a single sign, with tiered pricing from 5 sets and dedicated wholesale, reseller and OEM / private-label programs for sign companies and distributors.
Key Takeaways
- Outdoor neon signs are sealed to IP65–68 and built from UV-stable 8 mm acrylic, CNC groove, SMD 2835 LED and a silicone diffuser.
- No glass, no gas — daylight-visible, low-voltage and safe for facades, patios and monument signs.
- LED strip, driver, IP tier and colour tier are all specifiable — ask for the engineering drawing.
- MOQ 1 piece; tiered and wholesale pricing from 5 sets; 3–7 day production, DHL/air/sea shipping.
