Laser Cut Metal Signs
— Precision CNC & Plasma Cutting
Fiber-laser, plasma, and CNC-routed metal signs in steel, aluminum, and stainless — crisp logos and lettering to tight tolerances, then powder coated or electroplated. White-label for sign shops and agencies, MOQ 1 piece, 3–7 day production.
Fiber Laser · Plasma · CNC · Steel / Aluminum / Stainless · MOQ 1 pc · 3–7 day
What Is Laser Cut Metal Signage?
Laser cut metal signs are fabricated by cutting sheet metal with a fiber-laser beam to produce clean, precise outlines, lettering, and logos — the go-to method when a sign needs fine detail or a sharp cut-out edge. Panels are then deburred and finished with powder coat, electroplate, or bake paint. We also run plasma for thick steel and CNC for aluminum composite, so every job gets the right process.

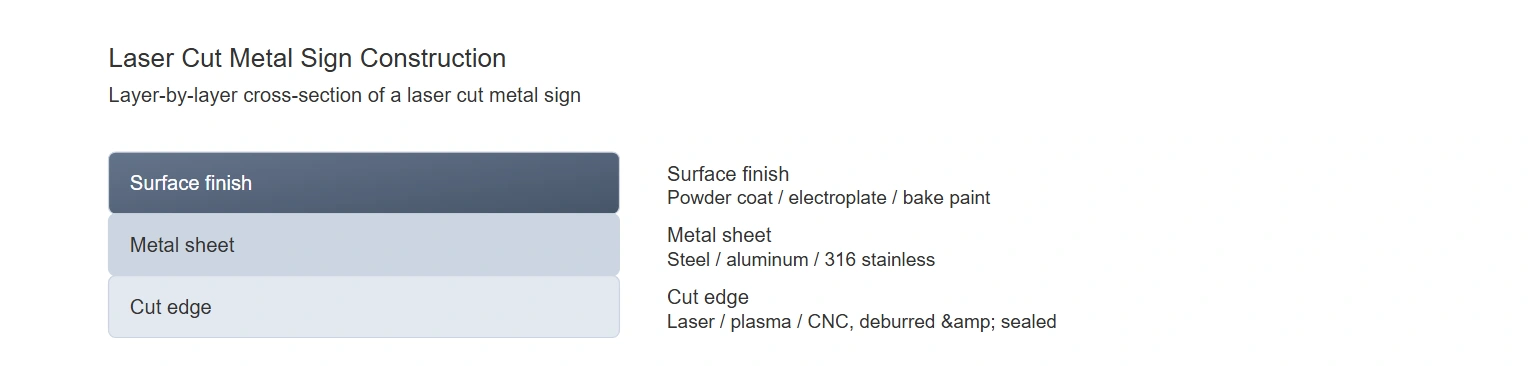

Cross-section of a laser cut metal sign — surface finish, metal sheet, and cut edge.

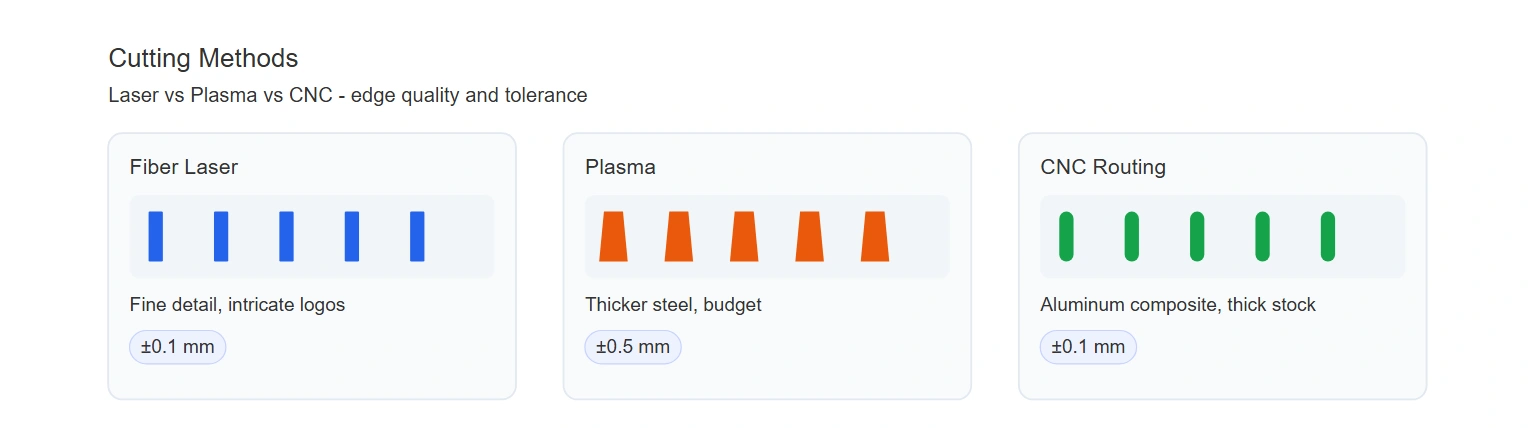

Cutting Methods — Laser vs Plasma vs CNC
| Method | Best for | Edge quality | Tolerance |
|---|---|---|---|
| Fiber laser | Fine lettering, intricate logos, thin stock | Clean, minimal dross | ±0.1 mm |
| Plasma | Thicker steel, large panels, budget | Slight taper, light dressing | ±0.5 mm |
| CNC routing | Aluminum composite, thicker stock, V-groove | Smooth machined edge | ±0.1 mm |
Cutting methods compared — fiber laser, plasma, and CNC routing.

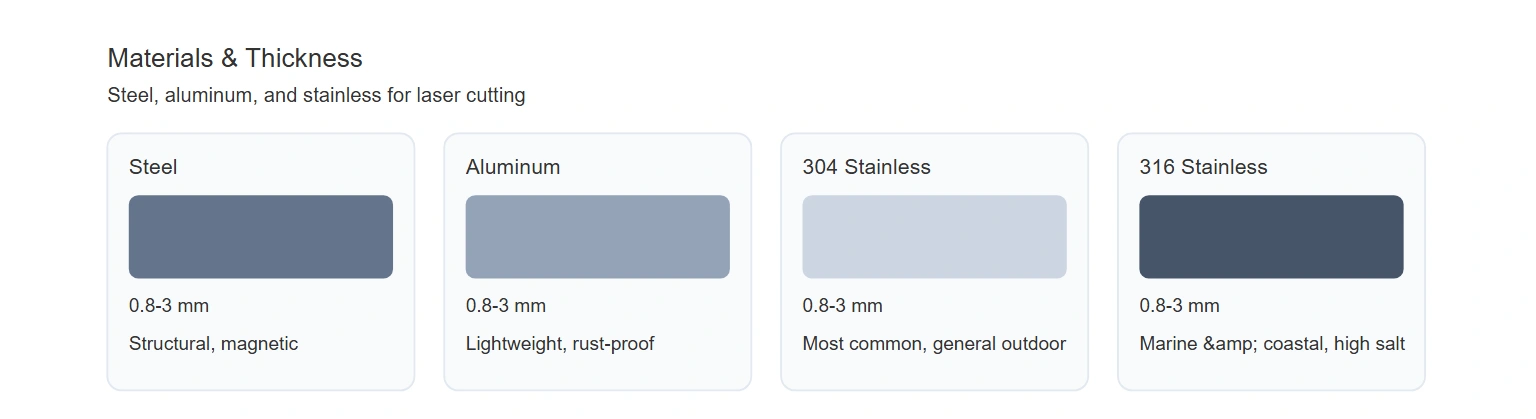

Materials & Thickness
| Material | Laser thickness | Notes |
|---|---|---|
| Cold-rolled steel | 0.8 – 3 mm (laser), thicker on plasma | Structural, magnetic, powder coat |
| Aluminum 3003 / 5052 | 0.8 – 3 mm | Lightweight, rust-proof, anodized/printed |
| 304 Stainless | 0.8 – 3 mm | Most common, general outdoor use |
| 316 Stainless | 0.8 – 3 mm | Marine & coastal, high salt spray |
| Aluminum composite (ACP) | 3 – 6 mm (CNC) | Flat rigid panels, lightbox backing |
Materials and thickness for laser cut metal signs.

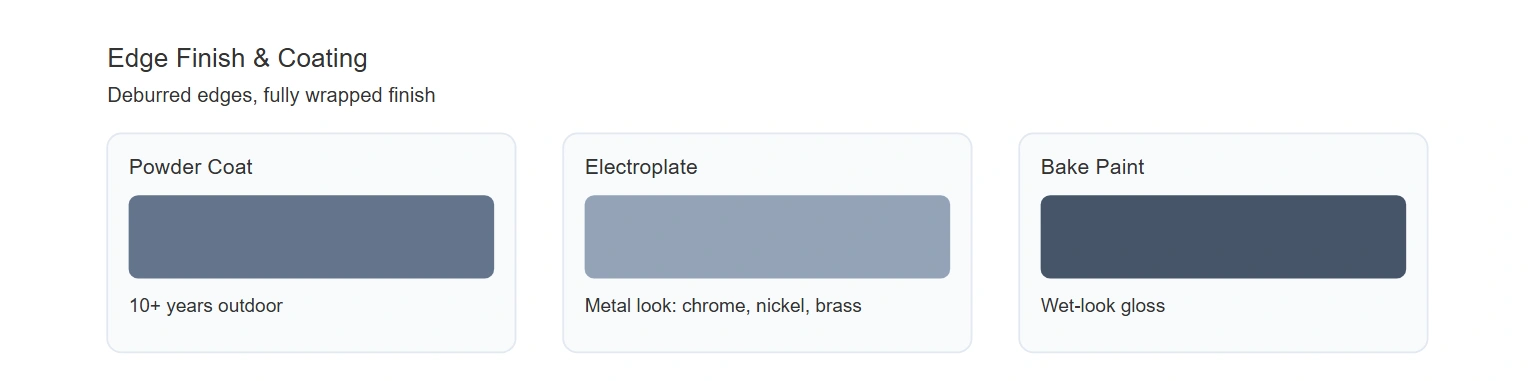

Edge Finish & Coating
Every panel is deburred after cutting, then coated so the finish wraps the cut edges — the point most vulnerable to corrosion. Powder coat gives a 10+ year UV-stable color; electroplate gives a metal look (chrome, nickel, bronze, brass); bake paint gives a wet-look gloss.
Edge finish and coating — powder coat, electroplate, and bake paint.
Powder Coat vs Bake Paint — Two Different Processes
A common point buyers ask about: powder coating is not bake painting — they are two different finishing processes. Both involve oven baking, but the coating material, the application principle, and the finished performance are different.
| Aspect | Powder Coat | Bake Paint |
|---|---|---|
| Coating material | Solid powder | Liquid paint (water or solvent) |
| Application | Electrostatic spray, then the oven melts & flows the powder | Spray, then the oven cures the paint |
| Hardness & scratch resistance | High | Moderate |
| Gloss & surface | Matte to gloss, dense uniform film | High gloss, very smooth |
| Environmental | Solvent-free | May contain VOCs |
| Best for | Outdoor / impact-prone metal | Appearance-first parts (car bodies, furniture) |
Rule of thumb: for outdoor or impact-prone metal parts, choose powder coat — it is harder and more corrosion-resistant. For a pure high-gloss, appearance-first finish, bake paint looks better.
Product Specifications (Ordering Reference)
| Parameter | Specification |
|---|---|
| Materials | Steel, aluminum 3003/5052, 316 stainless, ACP |
| Cutting | Fiber laser, plasma, CNC routing |
| Edge | Deburred + fully wrapped coating |
| Finishes | Powder coat, electroplate, bake paint, anodized |
| Tolerance | ±0.1 mm (laser / CNC) |
| MOQ | 1 piece |
| Lead time | 3 – 7 production days |
Applications by Industry
- Brand & retail — laser-cut logo signs and dimensional lettering.
- Corporate & office — room signs, brand walls, wayfinding.
- Hospitality — exterior panels, decorative screens and patterns.
- Industrial — equipment tags, safety and identification panels.
Customization Options
Any shape, any material, any finish. Send your logo as AI, DXF, PDF, or SVG (text converted to outlines) and we return a dimensioned cutting drawing for approval before production — so you see exactly what will be cut.
MOQ, Pricing Factors & Lead Time
MOQ is 1 piece; tiered pricing from 10 pieces. Production is 3–7 days; electroplating adds 1–2 days. Cost is driven by material, thickness, and cutting complexity — laser detail is fast, thick plasma-cut steel is the budget option. Worldwide DHL/air/sea shipping.
Frequently Asked Questions
What is laser cut metal signage?
Laser cut metal signage is fabricated by cutting sheet metal with a focused fiber-laser beam, producing clean, precise outlines, lettering, and logos with tight tolerances (±0.1 mm). It is the method of choice for intricate logos, fine text, and cut-out lettering that plasma or hand-cutting cannot match.
What is the difference between laser, plasma, and CNC cutting?
Laser cutting uses a focused beam for fine detail and clean edges on thin stock; plasma uses an ionized gas arc for fast, low-cost cutting of thicker steel with slightly rougher edges; CNC routing mechanically mills thicker stock and aluminum composite. We select the process per material and detail — fine lettering goes to laser, thick steel to plasma, ACP to CNC.
What materials and thicknesses can be cut?
Steel and stainless up to 3 mm on the fiber laser (thicker on plasma), aluminum up to 3 mm, and aluminum composite up to 6 mm on CNC. Typical signage uses 1.5–3 mm metal. Specify your material and we confirm the best process with the quote.
Can laser cut signs be powder coated or painted?
Yes. After cutting and deburring, panels go through powder coating (any RAL/Pantone), electroplating (chrome, nickel, bronze, brass), or bake paint. Coating wraps the cut edges, protecting them from corrosion.
What file formats do you accept?
Vector files — AI, DXF, PDF, or SVG. We convert your design to a cutting path and return a dimensioned drawing for approval before cutting. Logos and lettering should be converted to outlines.
Key Takeaways
- Fiber laser, plasma, and CNC cutting for steel, aluminum, and 316 stainless.
- Fine lettering and logos to ±0.1 mm tolerance, fully deburred and coated edges.
- Powder coat, electroplate, and bake paint finishes.
- White-label for sign shops and agencies — MOQ 1 piece, 3–7 day production.
- Send AI / DXF / PDF / SVG for a free cutting drawing and quote in 24 hours.
