Custom Metal Signs
— Aluminum, Steel & 316 Stainless Fabrication
Factory-direct custom metal signs for sign shops, display agencies, architects and brand installers — laser cut, plasma cut, CNC routed, powder coated and electroplated. White-label and wholesale fabrication with MOQ 1 piece, 3–7 day production and a written quote in 24 hours.
Aluminum · Steel · 316 Stainless · Powder Coat / Electroplate / Bake Paint · MOQ 1 pc · 3–7 day
What Is a Custom Metal Sign?
A custom metal sign is a fabricated sign panel cut from sheet metal — aluminum, steel, or stainless steel — shaped, finished, and mounted to identify a business, building, or space. Metal signs are the default choice for exterior and architectural signage because they outlast plastic and wood against weather, UV, and impact, and they accept durable finishes such as powder coating, electroplating, and baked paint. We manufacture to your vector file or dimensional specification — MOQ 1 piece — for resellers and agencies that need white-label fabrication with a written quote in 24 hours.

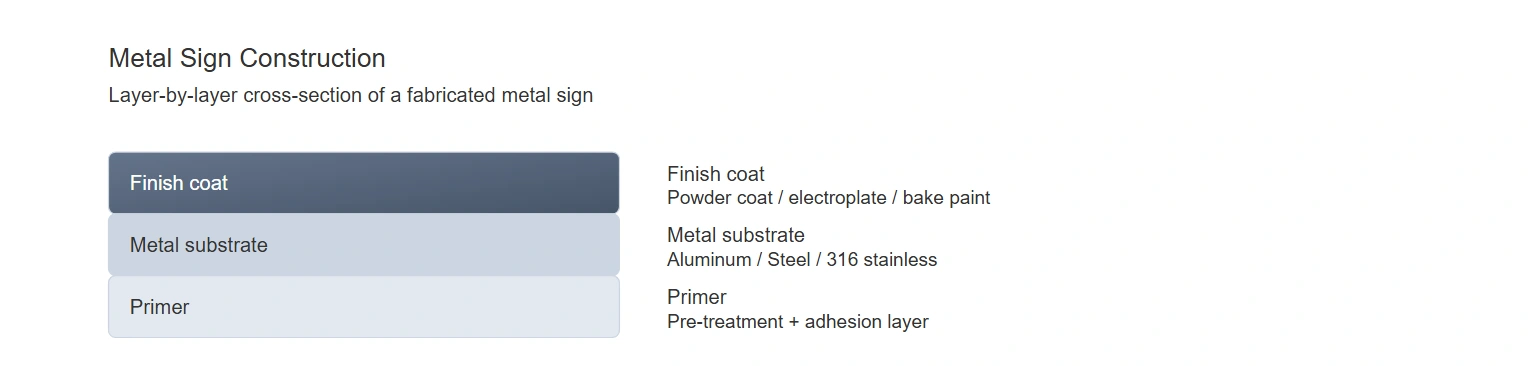

Cross-section of a fabricated metal sign — finish coat, metal substrate, and primer.
What you can expect from our factory
Flat metal cutting, press-brake bending, powder coating, electroplating, and bake painting have been our export core for years. You receive the same fabrication line that serves our metal letters and channel letters: fiber laser and plasma cutting, CNC routing, and an in-house finishing line — with CE/RoHS compliant materials and documented QC on every batch.
Materials — Aluminum, Steel, 304 & 316 Stainless
| Material | Typical thickness | Best for | Finish options |
|---|---|---|---|
| Aluminum (3003 / 5052) | 0.8 – 3 mm | Outdoor business signs, lightweight architectural panels | Brushed, anodized, powder coat, printed |
| Steel (cold-rolled) | 0.8 – 3 mm | Structural, magnetic, heavy-duty outdoor | Powder coat, bake paint, electroplate |
| 304 Stainless Steel | 0.8 – 3 mm | General outdoor signs, most common & cost-effective | Mirror, brushed, electroplate |
| 316 Stainless Steel | 0.8 – 3 mm | Marine, coastal, high-corrosion environments | Mirror, brushed, electroplate |
Stainless steel signs are fabricated in 304 and 316 grades. Sheet gauges beyond this range are available on request. For general outdoor use, 304 stainless is the standard choice — a good balance of corrosion resistance and cost. For coastal and marine installations we recommend 316 stainless, which resists salt-spray corrosion far longer than 304 or plain steel. Aluminum is the lightest option and is naturally rust-proof, making it the standard for large outdoor panels.
Fabrication — Laser vs Plasma vs CNC
| Method | Best for | Edge quality | Typical tolerance |
|---|---|---|---|
| Fiber laser cutting | Fine detail, small text, intricate logos | Clean, minimal dross | ±0.1 mm |
| Plasma cutting | Thicker steel, larger panels, lower cost | Slight taper, needs light dressing | ±0.5 mm |
| CNC routing | Aluminum composite, thicker stock, V-groove | Smooth machined edge | ±0.1 mm |
We select the process for your part, not the other way around. Thin aluminum with fine lettering goes to the fiber laser; 3 mm steel panels go to plasma when budget matters; aluminum composite and thicker stock go to CNC. Every cut is deburred and checked against your drawing before finishing.

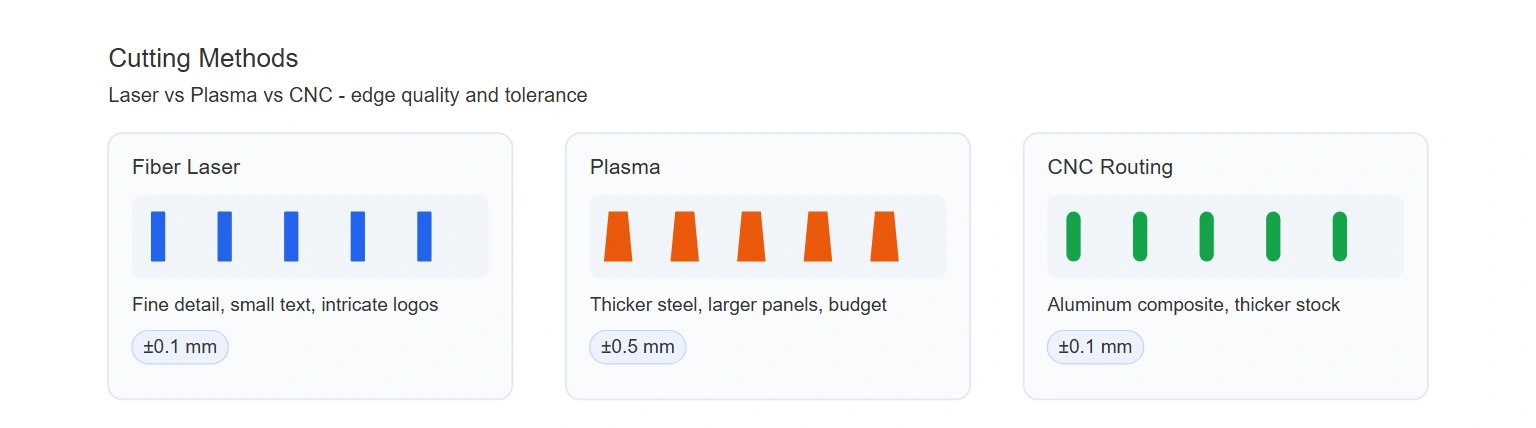

Cutting methods compared — fiber laser, plasma, and CNC routing.
Finish Options — Powder Coat, Electroplate, Bake Paint
| Finish | Appearance | Durability | Notes |
|---|---|---|---|
| Powder coat | Matte or gloss, any RAL / Pantone | 10+ years outdoor | Best overall weather resistance |
| Electroplate | Chrome, nickel, bronze, brass, gold | 5–10 years | Metal-look finish on steel / aluminum |
| Bake paint | High-gloss automotive look | 5–8 years | Smooth wet-look finish |
| Brushed / anodized | Satin directional grain | 10+ years (anodized) | Aluminum only |
Powder Coat vs Bake Paint — Two Different Processes
A common point buyers ask about: powder coating is not bake painting — they are two different finishing processes. Both involve oven baking, but the coating material, the application principle, and the finished performance are different.
| Aspect | Powder Coat | Bake Paint |
|---|---|---|
| Coating material | Solid powder | Liquid paint (water or solvent) |
| Application | Electrostatic spray, then the oven melts & flows the powder | Spray, then the oven cures the paint |
| Hardness & scratch resistance | High | Moderate |
| Gloss & surface | Matte to gloss, dense uniform film | High gloss, very smooth |
| Environmental | Solvent-free | May contain VOCs |
| Best for | Outdoor / impact-prone metal | Appearance-first parts (car bodies, furniture) |
Rule of thumb: for outdoor or impact-prone metal parts, choose powder coat — it is harder and more corrosion-resistant. For a pure high-gloss, appearance-first finish, bake paint looks better.

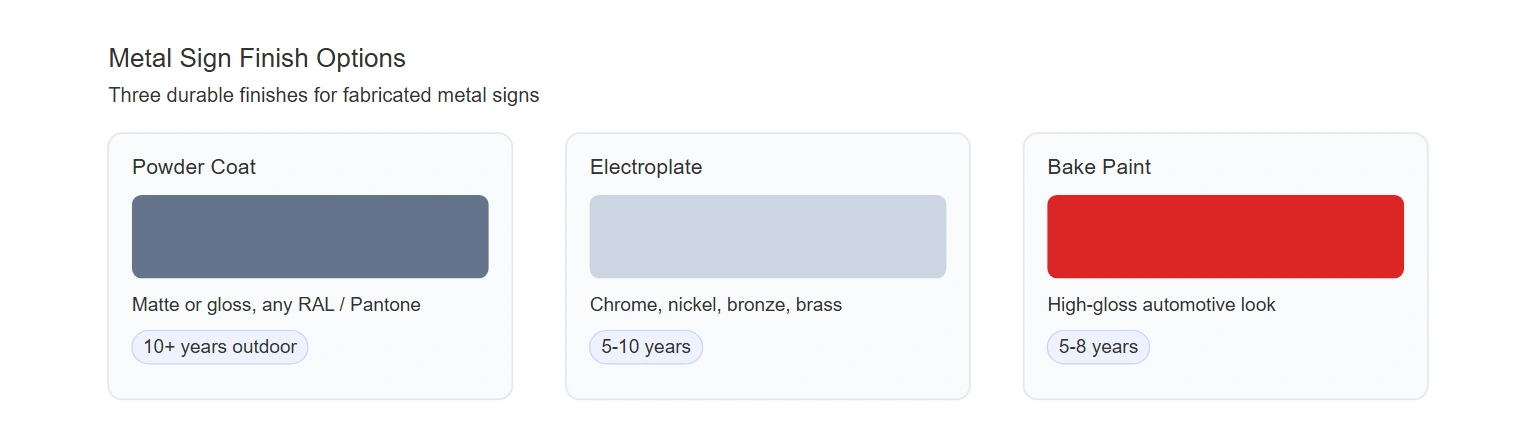

Metal sign finish options — powder coat, electroplate, and bake paint.
Metal Thickness & Size Guide
| Sign type | Recommended sheet | Max panel size | Notes |
|---|---|---|---|
| Interior office / lobby | 0.8 – 1.5 mm aluminum | 1200 × 2400 mm | Lightweight, flush mount |
| Exterior storefront | 2 – 3 mm aluminum or steel | 1500 × 3000 mm | Powder coat for UV resistance |
| Monument / building | 3 mm steel or 316 stainless | Custom, multi-panel | Structural frame behind |

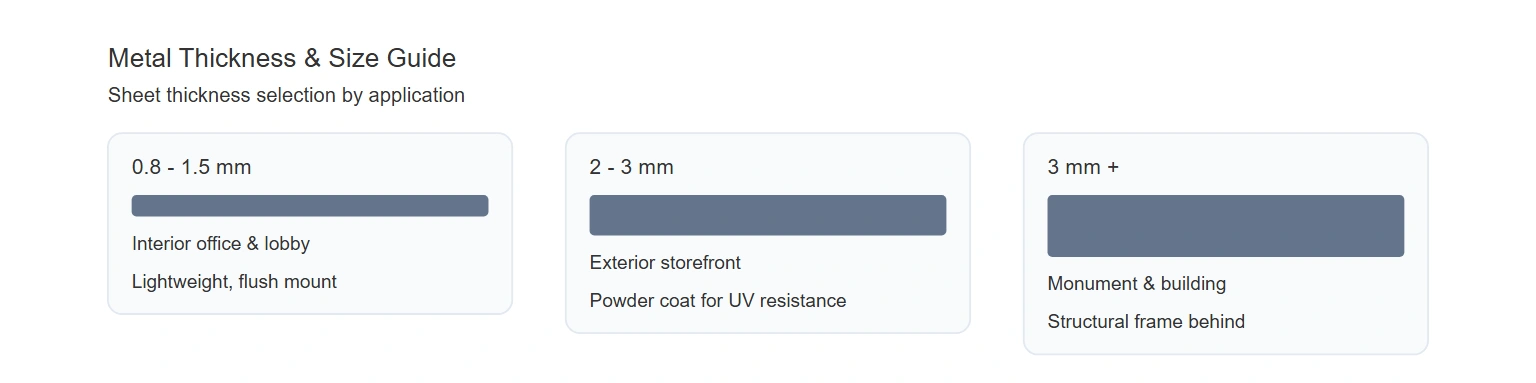

Sheet thickness selection by application — interior, exterior, and monument.
Product Specifications (Ordering Reference)
| Parameter | Specification |
|---|---|
| Materials | Aluminum 3003/5052, cold-rolled steel, 304/316 stainless |
| Sheet thickness | 0.8 – 3 mm (thicker on request) |
| Finishes | Powder coat, electroplate, bake paint, brushed, anodized |
| Cutting | Fiber laser, plasma, CNC routing |
| Mounting | Studs, standoffs, flush, or frame (per drawing) |
| Compliance | CE / RoHS materials |
| MOQ | 1 piece |
| Lead time | 3 – 7 production days |
Regulatory & Compliance
Fabrication uses CE/RoHS compliant sheet stock and finishes. We can provide material certificates (mill test reports) and finish compliance documentation on request. For projects requiring fire-rated or ADA-compliant signage, supply the specification at RFQ stage and we will confirm materials and finishes against it before quoting.
Failure Modes & Prevention
| Failure mode | Cause | Prevention |
|---|---|---|
| Rust / corrosion | Uncoated steel, coastal salt | 316 stainless or powder-coated aluminum |
| Fading | Ink/paint without UV stabilizer | UV-stable powder coat or anodizing |
| Delamination | Poor substrate prep | Degrease + phosphate pre-treatment before coating |
| Edge corrosion | Cut edges left bare | Edge dressing + full wrap coating |
| Warping | Undersized sheet for span | Gauge selection per panel size |
Quality Control & Test Methodology
Each batch passes dimensional check against the drawing, coating thickness measurement, and adhesion (cross-cut) testing. Every finished panel is inspected for burrs, coating defects, and color consistency under controlled light before packing. Batch QC records are available on request for white-label partners.
Total Cost of Ownership (TCO)
| Cost driver | Impact | Note |
|---|---|---|
| Material | Aluminum < steel < 316 stainless | 316 runs 2–3× aluminum |
| Finish | Powder coat < bake paint < electroplate | Multi-coat and metal plating add cost |
| Complexity | Simple shapes < fine lettering / cut-outs | Laser detail is fast; plasma on thick plate is cheaper |
| Volume | 1 pc retail vs 20+ wholesale | Tiered pricing from 10 pieces |
Applications by Industry
- Retail & hospitality — storefront, lobby, directional and wayfinding panels.
- Corporate & office — logo signs, room identification, brand walls.
- Property & facilities — building name, monument and entrance signs.
- Healthcare & institutional — durable exterior and directory signage.
- Municipal & marine — 316 stainless signage for coastal and outdoor environments.
Mounting & Installation
We fabricate to your mounting specification — flush with adhesive or screws, raised on standoffs or studs, or framed on a backing panel. Specify the mounting method and wall substrate at RFQ stage and we will include the correct hardware and a drilling template so the sign is install-ready on arrival.

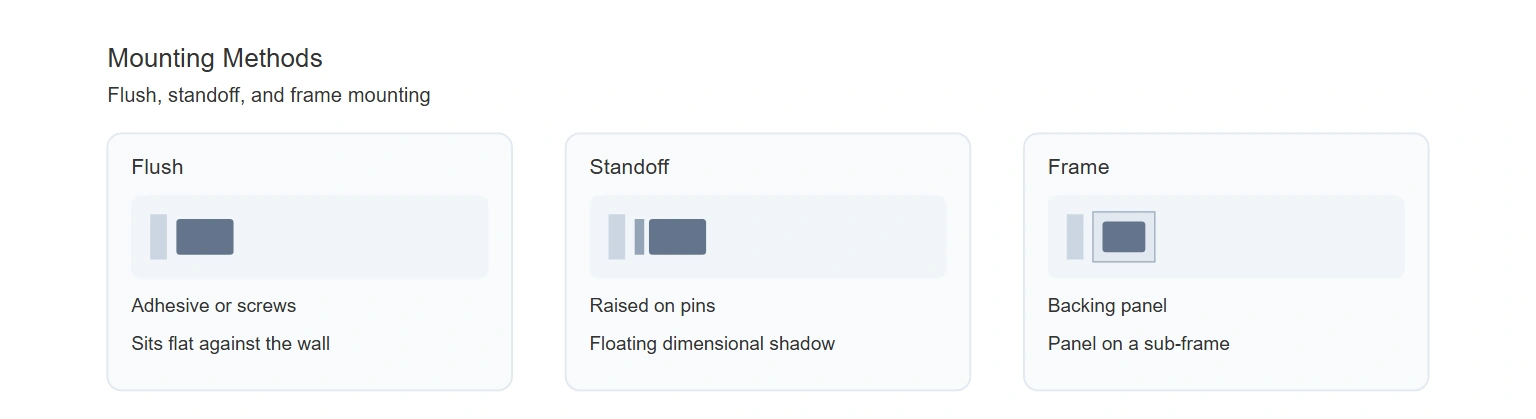

Mounting methods — flush, standoff, and frame.
Customization Options
Any shape, size, material, and finish. Send your logo or dimensional drawing as AI, DXF, or PDF and we return a free dimensioned engineering drawing with the quote — not a Pinterest mockup. Logos, cut-out lettering, and full-color printed aluminum are all in scope.
MOQ, Pricing Factors & Lead Time
MOQ is 1 piece; tiered pricing applies from 10 pieces. Production is 3–7 days depending on finish and quantity; electroplating adds 1–2 days. Shipping is DHL/air/sea worldwide. Request a quote with your file and we respond within 24 hours with a written price and lead time.
Production Process
- Drawing & confirmation — we return a dimensioned drawing for approval.
- Cutting — laser, plasma, or CNC per material and detail.
- Deburr & bend — edges dressed, press-brake forming where needed.
- Finishing — powder coat, electroplate, or bake paint.
- QC & packing — inspection against drawing, protected packing for freight.
Supplier Evaluation Checklist (16 Points)
- Material certificates and finish compliance documentation.
- In-house laser/plasma/CNC cutting vs outsourced.
- In-house powder coat and electroplate line vs outsourced.
- CE/RoHS material compliance.
- Tolerance and edge-quality sample.
- MOQ 1 pc and tiered wholesale pricing.
- 3–7 day production lead time.
- Free dimensioned engineering drawing before production.
- Vector file acceptance (AI / DXF / PDF).
- Batch QC records on request.
- Marine-grade 316 stainless availability.
- Worldwide DHL/air/sea shipping.
- White-label / no-brand packaging.
- Sample or proofing option.
- Responsive communication and 24 h quote.
- Install-ready mounting hardware and template.
Market Intelligence & Outlook
Custom signage is one of the few B2B categories where fabrication is inherently MOQ 1 — every order is a one-off. The buyer to reach is not the homeowner but the local sign shop, display agency, and brand installer who resells and installs your panels for their own clients. Our positioning — white-label, trade pricing, design-file acceptance, and engineering depth — is built for that buyer, not the Etsy retail shopper.
Frequently Asked Questions
What are custom metal signs?
Custom metal signs are fabricated sign panels cut from aluminum, steel, or stainless steel sheet, finished with powder coating, electroplating, or bake paint. They are the durable default for exterior and architectural signage, manufactured to your vector file or dimensional drawing with MOQ 1 piece.
What materials are available?
Aluminum (3003/5052), cold-rolled steel, and 316 stainless steel, in sheet thicknesses from 0.8 to 3 mm with thicker stock on request. Aluminum is the lightest and naturally rust-proof; 316 stainless is specified for marine and coastal environments.
How much do custom metal signs cost?
Cost is driven by material (aluminum lowest, 316 stainless highest), finish (powder coat lowest, electroplate highest), and cutting complexity. Volume orders of 10+ receive tiered pricing. Request a quote with your file for an exact written price within 24 hours.
Do you work with sign shops and agencies?
Yes — this is our core business. We offer white-label fabrication, no-brand packaging, trade pricing, and design-file acceptance (AI / DXF / PDF) so you can resell our panels as your own product.
Can metal signs be used outdoors?
Yes. Powder-coated aluminum and 316 stainless are rated for 10+ years outdoors. We select material and finish against your climate — coastal sites get 316 stainless, high-UV sites get UV-stable powder coat.
What is the MOQ and lead time?
MOQ is 1 piece; production is 3–7 days depending on finish and quantity, with electroplating adding 1–2 days. Shipping is DHL/air/sea worldwide.
Key Takeaways
- Custom metal signs in aluminum, steel, and 316 stainless, fabricated to your drawing.
- Laser, plasma, and CNC cutting with in-house powder coat, electroplate, and bake paint.
- White-label and wholesale for sign shops and agencies — MOQ 1 piece.
- 3–7 day production, CE/RoHS materials, worldwide DHL/air/sea shipping.
- Send AI / DXF / PDF for a free dimensioned drawing and written quote in 24 hours.
Ready to Improve Your Advertising Sign Supply Chain?
Whether you are looking for a new sign supplier, a backup manufacturer, or a trusted sourcing partner, We are ready to support your business.
