Channel Letters
— LED Illuminated Sign Letters
Front-lit, reverse (halo) and dual-lit channel letters, fabricated to order with acrylic faces, metal returns and high-efficiency LED modules. A factory-level engineering reference for sign companies, brand owners, procurement teams, distributors and project contractors — with construction, lighting, material, MOQ and QC specifications you can place an order against.
What Is a Channel Letter?
Channel letters are three-dimensional, individually-lit sign letters — a hollow “can” with a translucent acrylic face, metal returns (side walls) and LED modules inside. They are the dominant storefront sign format in North America and Europe because they read cleanly by day and glow brightly by night.
This page is a factory-level engineering reference written for sign resellers, architects and project specifiers, procurement teams, distributors and chain-brand managers. It covers the acrylic-face / metal-return construction, the front-lit vs reverse (halo) vs dual-lit lighting decision, LED and power engineering, IP and regulatory compliance, failure modes, QC methodology, total cost of ownership and market data.
What you can expect from our factory
- Front-lit, reverse (halo) & dual-lit channel letters, plus open-face and side-lit
- 3/16″ acrylic faces + .040″ metal returns (stainless returns available) or 3D printing (PVC material)
- UL 48 / CE / RoHS certified components and Class-2 power supplies
- MOQ from 1 piece (samples) to 10+ (bulk); 5–7 working-day production
- Free engineering drawing + written quote within 24 hours

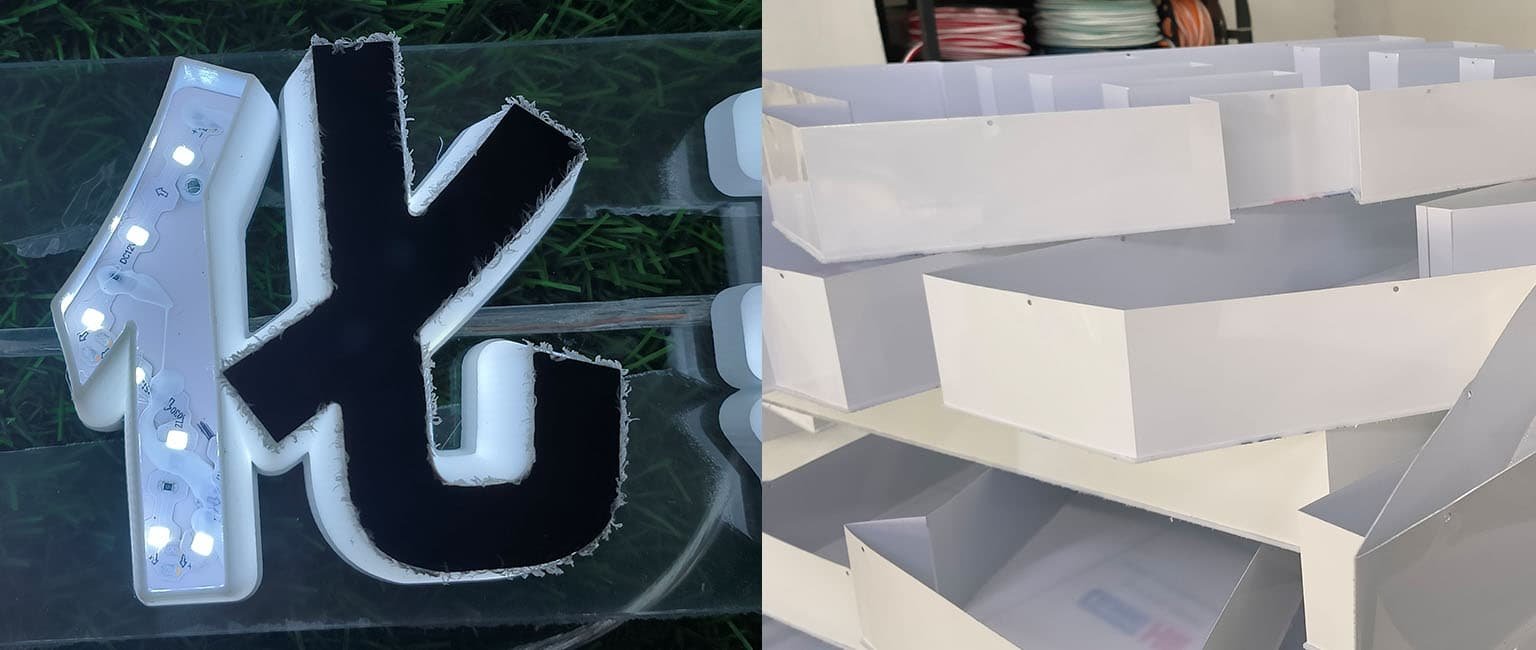

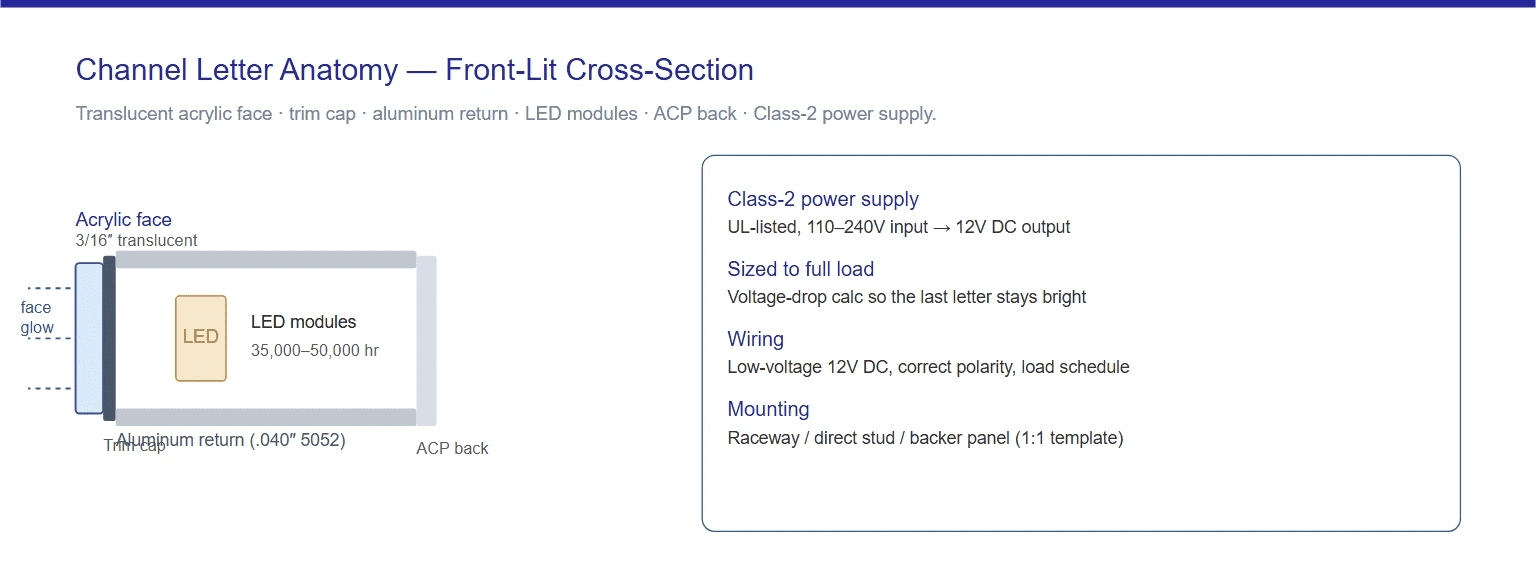

Construction: Acrylic Face, Metal Return, Trim Cap & LED
A channel letter is built from four parts: a laser-cut acrylic face (the translucent front), a 304 stainless steel or aluminum return (the bent side wall that gives the letter depth) , a trim cap (the metal rim that clips the face to the return), and a back (aluminum composite panel or galvanized sheet) with the LED modules and wiring inside. A UL-listed Class-2 power supply steps 110–240V line voltage down to 12V DC. 3D printing (PVC material) as the return is also widely used indoors.
| Component | Material / spec | Function |
|---|---|---|
| Face | 3/16″ (3 mm) acrylic (1/8″ for small letters; polycarbonate for impact) | Translucent light-diffusing front |
| Return (side wall) | .040″ (0.6–0.8 mm) 5052 aluminum, or stainless steel | Gives 3D depth; holds the face and back |
| Trim cap | 1″ or 2″ metal trim cap (or trimless build) | Clips the face to the return, clean edge |
| Back | 1/8″ ACP (aluminum composite) or galvanized sheet | Mounts the LED modules and wiring |
| Light source | LED modules / strips, 35,000–50,000 hr, waterproof | Illuminates the face (front) or wall (reverse) |
| Power | UL-listed Class-2 12V DC supply, 110–240V input | Safe low-voltage drive, sized per letter run |

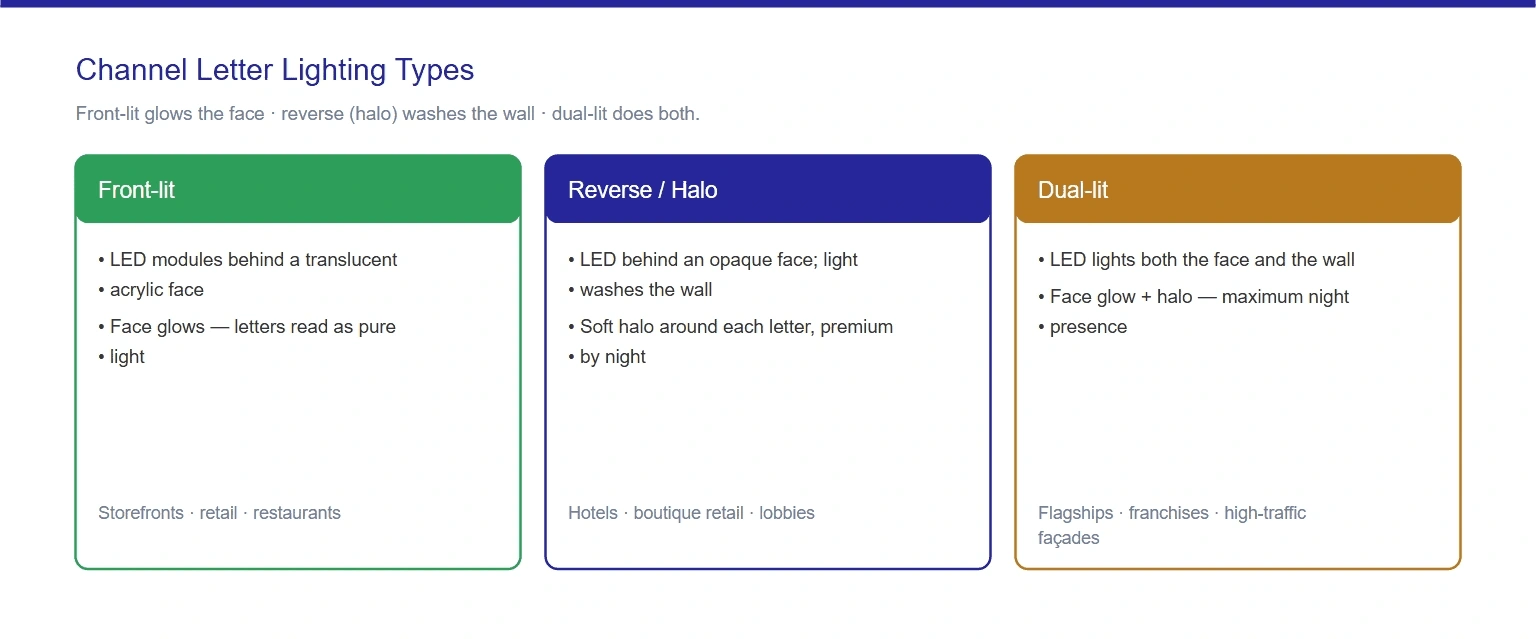

Lighting Types: Front-Lit, Reverse (Halo), Dual-Lit & More
The lighting route is the single biggest visual and cost decision on a channel-letter order. Front-lit is the economical workhorse; reverse (halo) is the premium architectural look; dual-lit combines both for 24/7 brand presence.
| Type | How it lights | Look | Best for |
|---|---|---|---|
| Front-lit (standard) | LED modules behind a translucent acrylic face | Face glows — letters read as pure light | Storefronts, retail, restaurants, strip malls |

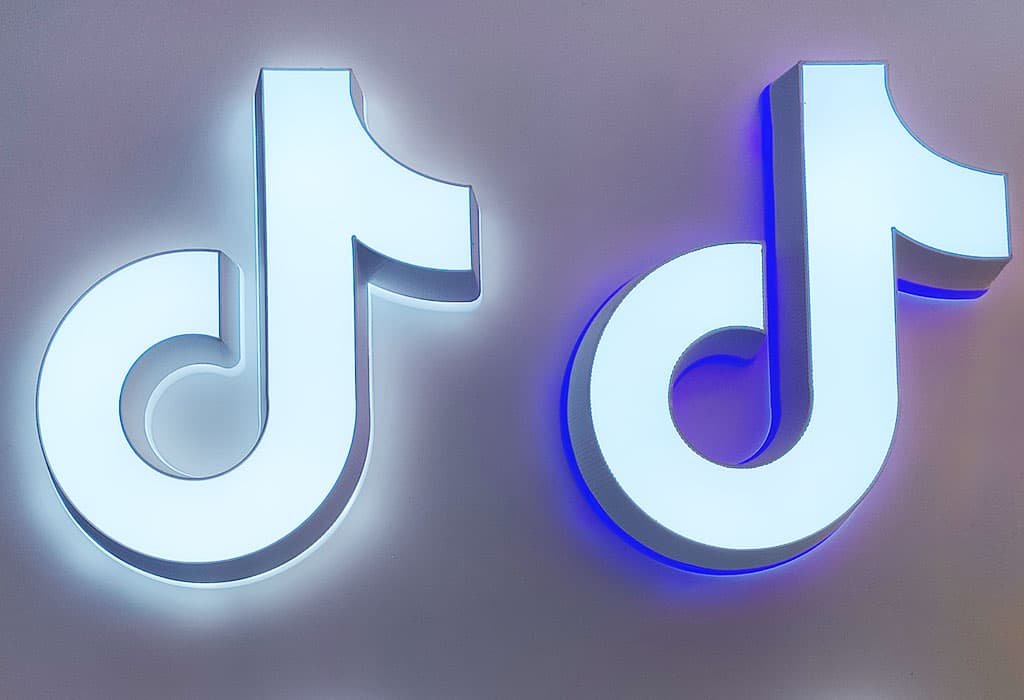

| Reverse / halo-lit | LED behind an opaque face; light washes the wall | Soft halo around each letter, premium by night | Hotels, boutique retail, corporate lobbies |
| Dual-lit (front + back) | LED lights both the face and the wall | Face glows + halo — maximum night presence | Flagships, franchises, high-traffic façades |
| Open-face | Exposed LED or neon tubes on a metal back | Retro exposed-lamp look | Bars, diners, heritage branding |
| Side-lit (edge-lit) | LED strips along the letter edge | Slim, modern edge glow | Interior brand walls, offices |

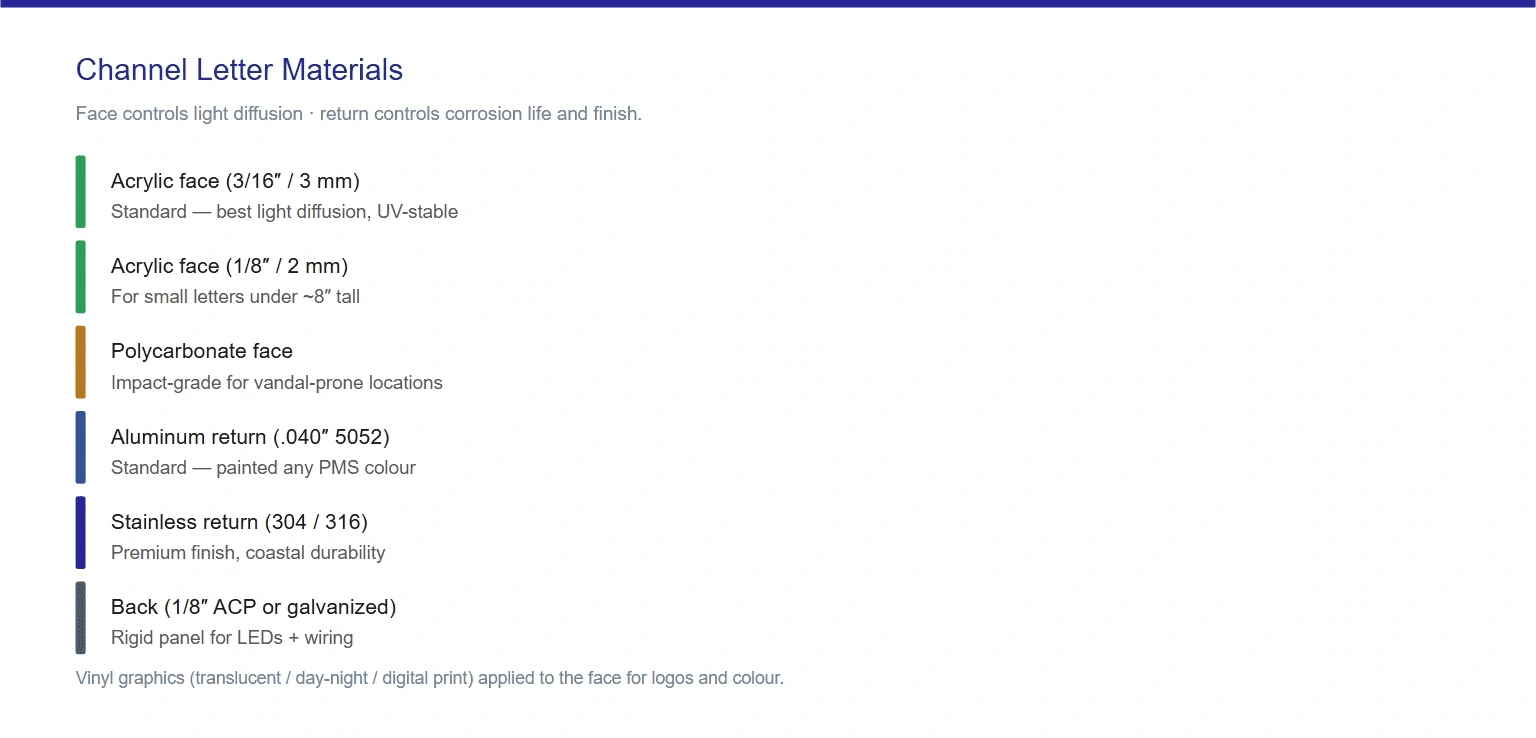

Materials: Acrylic Faces, Stainless & Other Metal or 3D Printing (PVC) Returns
Face material controls light diffusion and long-term clarity; return material controls corrosion life and finish. We default to 304 stainless steel returns for high quality and 3/16″ thickness acrylic faces for even light diffusion, with 316 stainless-steel returns for premium or coastal projects.
| Part | Material | Notes |
|---|---|---|
| Acrylic face (standard) | 3/16″ (3 mm) acrylic | Best light diffusion; indoor/outdoor; UV-stable |
| Acrylic face (small letters) | 1/8″ (2 mm) acrylic | For letters under ~8″ tall |
| Polycarbonate face | Impact-grade PC | For high-impact / vandal-prone locations |
| Return — aluminum | .040″ (0.6–0.8 mm) 5052 aluminum | Standard; painted any PMS color |
| Return — stainless | 304 / 316 stainless, welded & painted | Premium finish, coastal durability |
| Back | 1/8″ ACP or galvanized sheet | Rigid mounting panel for LEDs + wiring |
| Vinyl graphics | Translucent / day-night / digital-print vinyl | Applied to face for logos and colour |
Technical Specifications & Product Parameters
| Parameter | Specification | Notes |
|---|---|---|
| Construction | Acrylic face + aluminum/stainless return + trim cap + ACP back | Trimless option available |
| Face | 3/16″ (3 mm) acrylic; 1/8″ for small; polycarbonate for impact | UV-stable, even diffusion |
| Return | .040″ (0.6–0.8 mm) 5052 aluminum or 304/316 stainless | Painted any PMS color |
| Depth | 3″ / 5″ (76 / 127 mm) standard; 6–8 cm custom | Deeper returns for taller letters |
| Letter height | 4″ – 72″+ (100 mm – 1800 mm+) | Custom sizes on request |
| Lighting | Front-lit / reverse (halo) / dual-lit / open-face / side-lit | RGB / programmable on request |
| LED | LED modules, 35,000–50,000 hr, IP66 waterproof | White / warm white / RGB |
| Power supply | UL-listed Class-2 12V DC, 110–240V input | Sized per letter run; wiring diagram supplied |
| IP rating (outdoor) | IP66 | Waterproof modules + weep holes |
| Mounting | Raceway / direct stud / backer panel | 1:1 drilling template included |
| Certification | UL 48, CE, RoHS, ISO 9001 | SGS reports on request |
Regulatory & Compliance Matrix
For commercial projects, the relevant standard is usually specified by the landlord, the local authority, or the client’s insurer. We build channel letters to the standard you require and supply the documentation. UL-listed channel letters use UL 48 / UL 879 listed LED modules and Class-2 power supplies — specify this at quote time if the installation requires it.
| Standard | Scope | Relevance to channel letters |
|---|---|---|
| UL 48 | Electric signs (North America) | Full sign listing for US / Canadian installs |
| UL 879 | Electric sign components | Listed LED modules, power supplies & wiring inside the letter |
| CE (LVD + EMC) | EU electrical safety & EMC | Required for the European market |
| RoHS | Restriction of hazardous substances | Lead-free solder, compliant acrylic / metal / LED |
| IP65 / IP67 | Ingress protection (IEC 60529) | Dust-tight + water-jet / immersion for outdoor letters |
| ISO 9001:2015 | Quality management | Process control from cutting to final inspection |

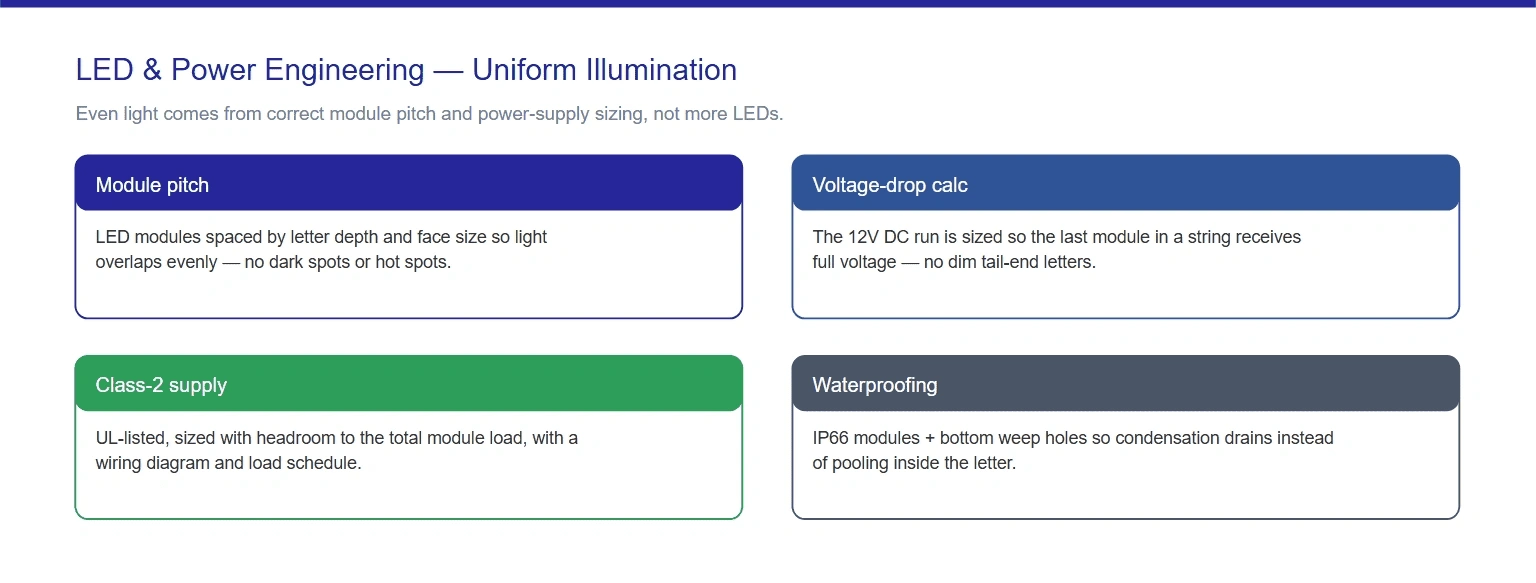

LED & Power Engineering: Uniform Illumination
The difference between a “hot-spot” sign and a clean, even face is LED module pitch (spacing) and power-supply sizing. Modules spaced too far apart leave dark spots in large letters; an undersized transformer causes voltage drop and dim, uneven lettering.
- Module pitch — we set LED module spacing by letter depth and face size so light overlaps evenly across the face with no dark spots
- Voltage-drop calc — the 12V DC run is sized so the last module in a string receives full voltage (no dim tail-end letters)
- Class-2 power supply — UL-listed, sized with headroom to the total module load, with a wiring diagram and load schedule
- Waterproofing — IP66 modules + bottom weep holes so condensation drains instead of pooling
Applications by Industry
- Retail & restaurants — front-lit storefront letters, strip-mall and plaza signage
- Hospitality — reverse (halo) letters for hotels and boutique storefronts; dual-lit for night curb appeal
- Franchise & chains — programmatic, colour-matched lettering across multiple locations
- Corporate & offices — lobby brand walls, side-lit interior letters
- Entertainment & hospitality venues — open-face and retro channel letters
Customization Options
- Fonts & logos — any vector file (AI / EPS / PDF / DXF); we fabricate to exact letterform, spacing and kerning
- Lighting — front-lit, reverse (halo), dual-lit, open-face, side-lit; monochrome, RGB, gradient or programmable
- Face & colours — acrylic in any PMS colour; translucent, day-night or digital-print vinyl graphics
- Returns — stainless steel (polished / brushed / painted) or other metal or 3D printing (PVC material)
- Trim cap — 1″ or 2″ trim cap, or trimless
- Mounting — raceway, direct stud mount, or backer panel (any colour); 1:1 template supplied

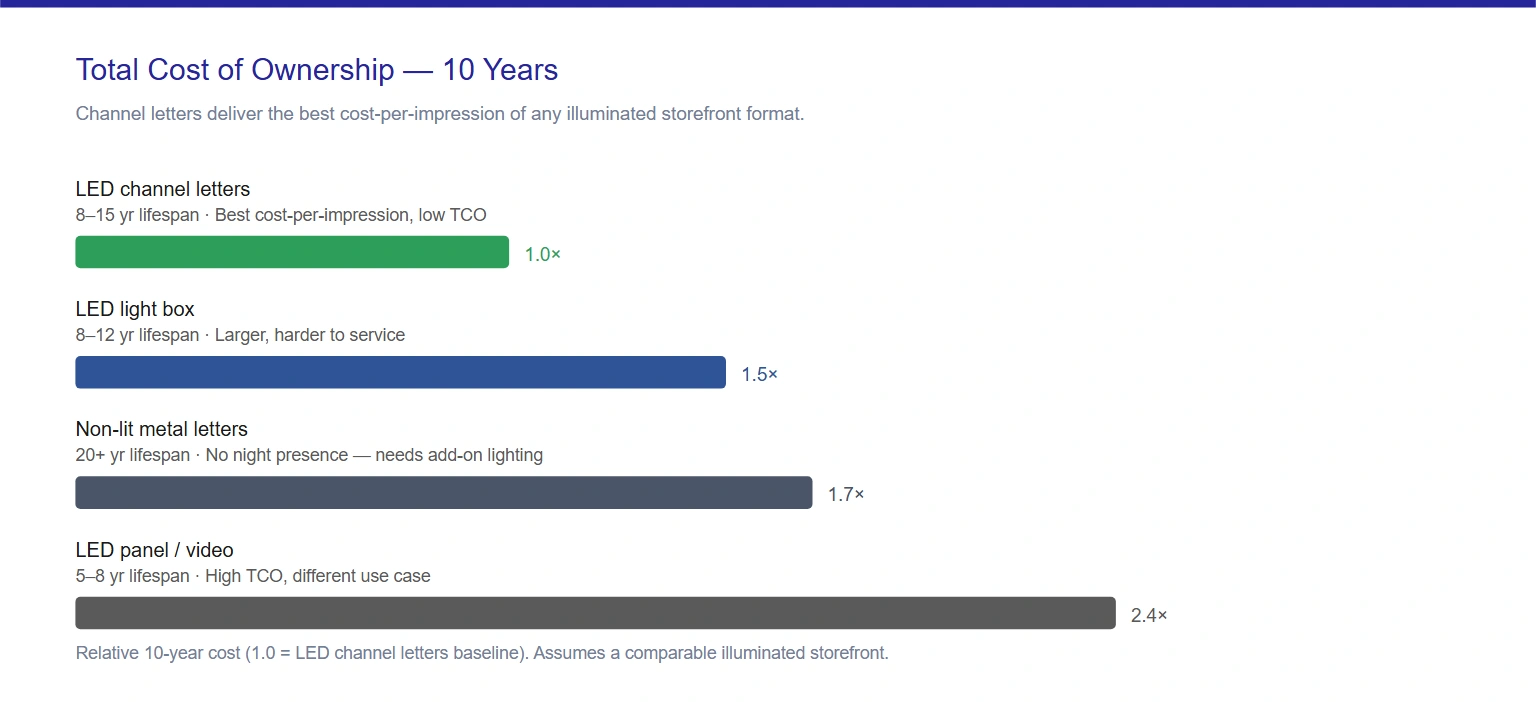

Total Cost of Ownership: Channel Letters vs. Alternatives
Channel letters are the lowest-cost fully-illuminated storefront format and, on a 10-year horizon, beat both non-lit metal letters (no night presence) and LED light boxes (larger, harder to service) on cost-per-impression.
| Option | Up-front cost | Night visibility | Maintenance | 10-yr verdict |
|---|---|---|---|---|
| LED channel letters (this product) | Medium | Excellent (face/halo) | LED/face service over 8–15 yrs | Best cost-per-impression, low TCO |
| Non-lit metal letters | Higher | None (needs separate lighting) | Minimal | No night presence — needs add-on lighting |
| LED light box | Medium-high | Good (whole face lit) | Face + LED replacement | Larger, harder to service |
| LED panel / video | High | Excellent (dynamic) | Module replacement | High TCO; different use case |
Quality Control & Test Methodology
Every channel-letter batch passes a documented QC gate before packing: electrical, optical, dimensional and weather checks.
| Test | Standard / method | What it verifies |
|---|---|---|
| LED burn-in | 24-hour continuous run | Early-failure screening, colour temperature stability |
| Brightness uniformity | Luminance meter across the face | Even glow, no hot spots or dark spots |
| Voltage / load check | Multimeter on the 12V DC run | Full voltage at the last module, no drop |
| Waterproof / seal | IP66 pressure + spray test | Outdoor letter sealing + weep-hole drainage |
| Dimensional accuracy | Vernier vs. drawing | Letter height, stroke width, spacing ± tolerance |
| Face colour & diffusion | Visual + spectrometer | Acrylic colour and light transmission to spec |
| Wiring & ground | Continuity + insulation test | Safe Class-2 wiring, correct polarity |
Failure Modes & Prevention (What to Watch For)
These are the field failures to design against at specification time — most are prevented up front, not fixed in service.
| Failure mode | Root cause | Detection | Prevention (specify at order) |
|---|---|---|---|
| Hot spots / dark spots | LED module pitch too wide for depth | Uneven face glow | Specify correct module pitch per letter depth |
| Dim tail-end letters | Voltage drop on undersized supply | Last letters dimmer | Size Class-2 supply to full load with headroom |
| Water ingress / condensation | Seal not IP66 / missing weep holes | Internal fogging, LED failure | Specify IP66 + bottom weep holes |
| Acrylic yellowing | Non-UV-stable face in direct sun | Faded/yellowed face | Specify UV-stable acrylic; polycarbonate for harsh sun |
| Trim cap / face detachment | Poor clip or adhesive in high wind | Loose face | Specify welded trim cap + correct mounting for wind zone |
| LED premature failure | Non-branded modules / poor heat | Dead sections | Specify 50,000-hr branded modules + UL supply |
MOQ, Pricing Factors & Lead Time
| Item | Detail |
|---|---|
| MOQ | 1 piece (samples) · 10+ pieces (bulk, tiered pricing) |
| Production | 5–7 working days after design approval (reverse/dual-lit 7–10 days) |
| Free proof | Engineering drawing + quote within 24 hours |
| Shipping | Express 5–7 days · air ~10 days · sea 40–65 days · DDP available |
| Payment | T/T, L/C, PayPal — 50% deposit / 50% before shipment |
| Incoterms | FOB / CIF / DDP with protective packaging + insurance |
Pricing is per letter and scales with height, depth, lighting type (front-lit vs. reverse vs. dual-lit), face/return material, trim cap style and quantity. Reverse (halo) and dual-lit builds carry a premium; volume orders of 50+ and 100+ units unlock 15–25% tiered pricing. Send your artwork for an exact quote.
Production Process
- Artwork intake — vector file (AI/EPS/PDF/DXF) or font + text; spacing and kerning normalised.
- Engineering proof — dimensioned shop drawing with letter heights, depths, LED layout and mounting for approval.
- Face & back fabrication — acrylic face laser-cut; back panel cut and drilled for LED modules.
- Return forming — stainless or other metal bent and welded to the letter shape; trim cap fitted, or 3D printing (PVC material)
- Painting — returns painted to PMS colour; face graphics (vinyl) applied.
- LED & wiring — modules mounted at spec pitch, 12V DC wiring, Class-2 power supply sized.
- QC gate — burn-in, uniformity, voltage, waterproof and dimensional checks (see QC table).
- Packing & ship — protective film + foam/wood-crate packing, FOB/CIF/DDP.
Supplier Evaluation Checklist (Procurement)
Use this 16-point checklist when vetting any channel-letter manufacturer — including us — to de-risk a signage procurement.
- Is the factory direct (no trading company), and can they show the fabrication line?
- Do they specify face and return materials (acrylic grade, aluminum alloy, thickness)?
- Can they set LED module pitch to the letter depth for even illumination (no hot spots)?
- Do they size the Class-2 power supply to the full load with a voltage-drop calculation?
- Are LED modules branded (50,000-hr) and the power supply UL-listed?
- Is the outdoor build IP66 with weep holes, or a dry-indoor-only design?
- Do they provide a 1:1 mounting template and a wiring diagram with every order?
- Is MOQ and tiered pricing transparent, with no hidden tooling fees?
- What is the real lead time — including proof approval — for reverse/dual-lit orders?
- Do they offer FOB/CIF/DDP and handle export packaging + insurance?
- Can they match brand colours (acrylic face, painted returns, vinyl) to a PMS reference?
- Do they show a documented QC gate (burn-in, uniformity, voltage, waterproof)?
- Is there a warranty, and what does it actually cover (LED, face, structure, power)?
- Can they provide recent project references with photos for your vertical?
- How do they handle rework/returns on a defect, and who pays freight?
- Are they responsive (24-hr quote) and fluent in the required language?
Market Intelligence: Channel Letters in the Signage Market
Channel letters sit inside a global signage market valued at USD 39.43 billion in 2026, projected to reach USD 60.06 billion by 2036 (4.3% CAGR), per Future Market Insights; within architectural signage specifically, Market Reports World projects growth from USD 1,242.5 million in 2026 to USD 1,907.8 million by 2035 (4.41% CAGR).
Demand drivers: the retail and franchise build-out cycle (channel letters are the standard illuminated storefront format), brand owners upgrading from exposed-bulb and non-lit signs to energy-efficient LED lettering, and the shift to low-voltage LED modules that cut running cost versus legacy neon. For B2B suppliers, the durable margin is in engineering-led customisation — documented LED layout, waterproofing and QC — not commodity pricing.
Frequently Asked Questions
What is a channel letter and how is it built?
A channel letter is a three-dimensional, individually-lit sign letter built from a translucent acrylic face, a bent aluminum or stainless return (side wall), a metal trim cap, and a back panel that holds the LED modules and wiring. A UL-listed Class-2 power supply steps line voltage down to 12V DC to drive the LEDs safely.
What is the difference between front-lit, reverse and dual-lit channel letters?
Front-lit letters have LED modules behind a translucent face, so the face glows — the economical standard. Reverse (halo) letters put the LED behind an opaque face so light washes the wall, drawing a premium halo. Dual-lit letters light both the face and the wall for maximum night presence, at a higher cost.
What materials are your channel letters made from?
Faces are 3/16″ (3 mm) UV-stable acrylic (1/8″ for small letters, polycarbonate for impact locations); returns are .040″ 5052 aluminum painted to any PMS colour, or 304/316 stainless steel for premium or coastal projects; backs are 1/8″ aluminum composite panel or galvanized sheet.
Are your channel letters UL listed and suitable for outdoor use?
Yes. Components and power supplies are UL 48 / CE / RoHS certified, and outdoor letters are built to IP66 with waterproof LED modules and bottom weep holes for drainage. We supply a wiring diagram and load schedule with every order.
What is the minimum order quantity and lead time?
MOQ is 1 piece for samples and 10+ pieces for bulk with tiered pricing. Front-lit letters ship in 5–7 working days after design approval; reverse and dual-lit builds take 7–10 working days. Express shipping reaches most countries in 5–7 days, with air and sea options and DDP available.
How do you ensure the letters are evenly lit with no hot spots?
We set LED module pitch by letter depth and face size so light overlaps evenly across the face, and we size the Class-2 power supply to the full module load with a voltage-drop calculation so the last letter in a run receives full voltage. Every batch passes a 24-hour burn-in and brightness-uniformity check.
Can you match my brand font, logo and exact brand colours?
Yes. Send a vector file (AI / EPS / PDF / DXF) or choose a font and text, and we fabricate to the exact letterform, spacing and kerning. Faces are available in any PMS acrylic colour with translucent, day-night or digital-print vinyl graphics; returns are painted to any PMS colour.
Key Takeaways
- Acrylic faces + aluminum/stainless returns + UL-listed LED modules — the standard illuminated storefront format
- Front-lit, reverse (halo) and dual-lit options; IP66 outdoor rated
- UL 48 / CE / RoHS certified, Class-2 power supplies sized to full load
- MOQ 1 piece (samples) to 10+ (bulk); 5–7 working-day production
- Free engineering drawing + written quote within 24 hours
Get a Free Engineering Drawing & Quote
Send your logo, text and size requirement — we return a dimensioned shop drawing, a lighting and material recommendation, and a written quote with MOQ and lead time within 24 hours. Whether you are a sign reseller, a brand owner, or a procurement manager building a franchise program, tell us your project and we will spec it precisely.
