LED Acrylic Letters — A Factory Engineering Reference
LED acrylic letters — also sold as acrylic LED letters, acrylic block letters, LED embedded acrylic letters and solid acrylic letters with LED — are illuminated, three-dimensional sign letters built from solid acrylic rather than a metal “can”. In the fully-luminous build that defines this product, a thick 17 mm solid-acrylic face sits over a 7 mm acrylic backplate that carries the LED strip, and the two halves are fixed together with screws and glue. The LED light travels through the whole 17 mm body, so the entire letter glows evenly — no visible strip, no dark centre, no separate metal return. This page is written for sign resellers, architects, procurement teams, distributors and project contractors — it gives the optical, material, waterproofing, MOQ and QC specifications you can place an order against, not retail marketing copy.
What you can expect from our factory
- ISO 9001:2015 quality system; CE / RoHS / UL-listed LED modules and power supplies
- 17 mm solid-acrylic face + 7 mm LED backplate(custom size), fixed with screws and optical glue — the fully-luminous (whole-body glow) build
- MOQ 1 piece; 3–7 working-day production after artwork approval
- Free dimensioned engineering drawing + written quote within 24 hours, with a lit video proof before shipping
What Are LED Acrylic Letters? (And How They Differ from Channel Letters)
A channel letter is a hollow shell — an acrylic face over an aluminium return — with LED modules inside. An LED acrylic letter is a solid, monolithic letterform: the acrylic is the letter, and the LED strip is sealed inside it. Because there is no metal return and no trim cap, the face runs edge-to-edge and the light diffuses through the full acrylic body. The result reads as one continuous, self-glowing form by day and night — which is why this build is called fully-luminous (whole-body glow) rather than face-lit or edge-lit.
The engineering difference matters more than the look. A channel letter hides its LEDs behind a thin 3 mm face and needs the aluminium return for structure; a 17 mm solid-acrylic letter gets its structure from the acrylic itself and gets its even glow from the light-guide behaviour of the thick face. That single choice — thick solid acrylic over a thin face — is what separates a premium, decade-long sign from one that shows hot spots and yellows in a year.

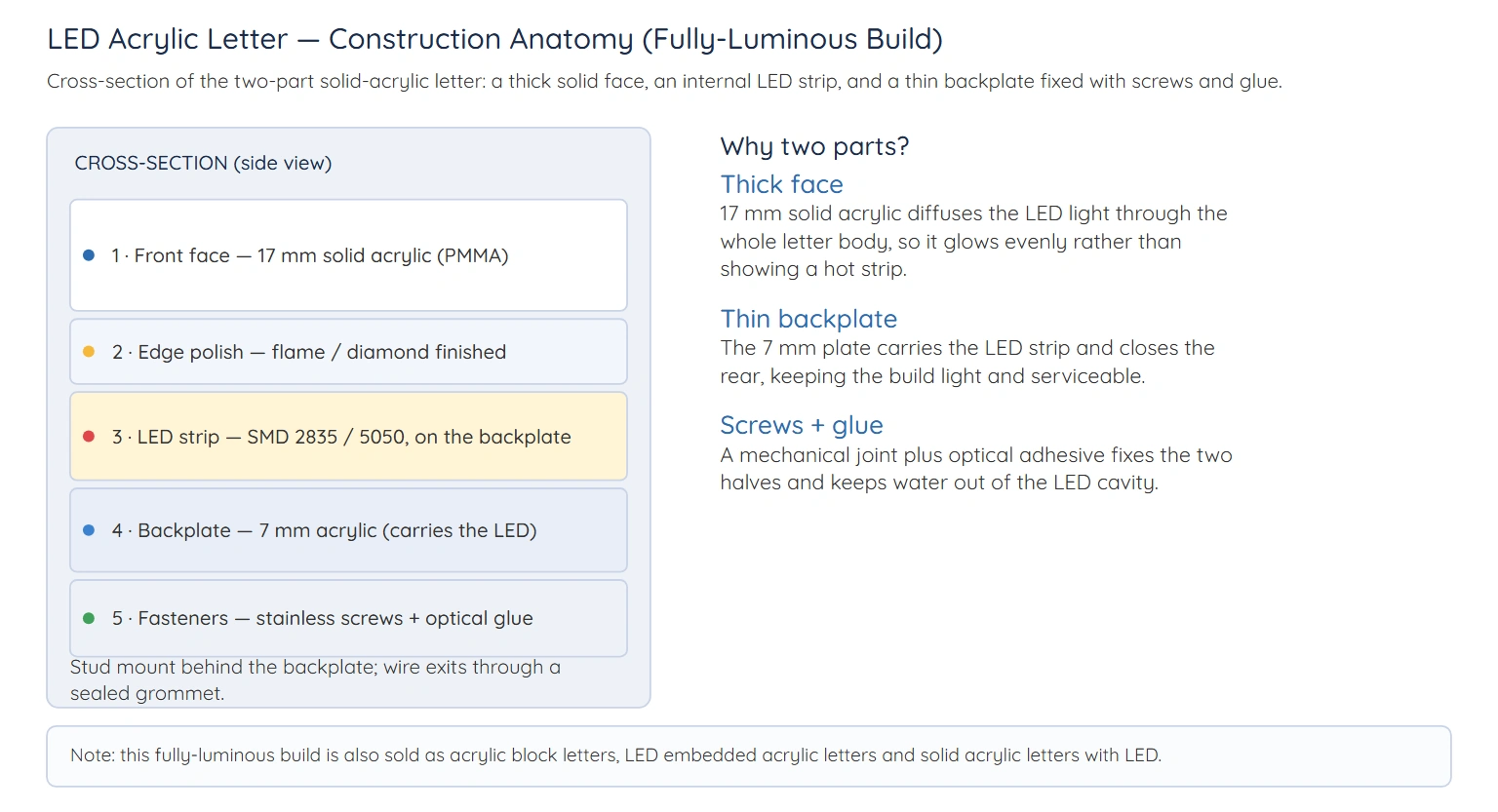

Construction Anatomy — 17 mm Face + 7 mm LED Backplate
Cross-section of the two-part fully-luminous build: a 17 mm solid-acrylic face, an internal SMD LED strip, and a 7 mm acrylic backplate fixed with stainless screws and optical glue.
| Component | Specification | Notes |
|---|---|---|
| Front face | 17 mm solid acrylic (PMMA) | Thick solid face diffuses the LED light through the whole letter body for an even, whole-letter glow |
| Backplate | 7 mm acrylic | Carries the LED strip and closes the rear; keeps the build light and serviceable |
| LED source | SMD 2835 / 5050 waterproof strip | Mounted on the backplate; 60–120 LEDs/m sized to the face thickness |
| Fastening | Stainless screws + optical glue | Mechanical joint plus clear PMMA adhesive seals the seam against moisture |
| Edge finish | Flame- or diamond-polished | Crisp, transparent edges that transmit light cleanly |
| Mounting | Stud + spacer (hidden) | Wire exits through a sealed grommet behind the backplate |

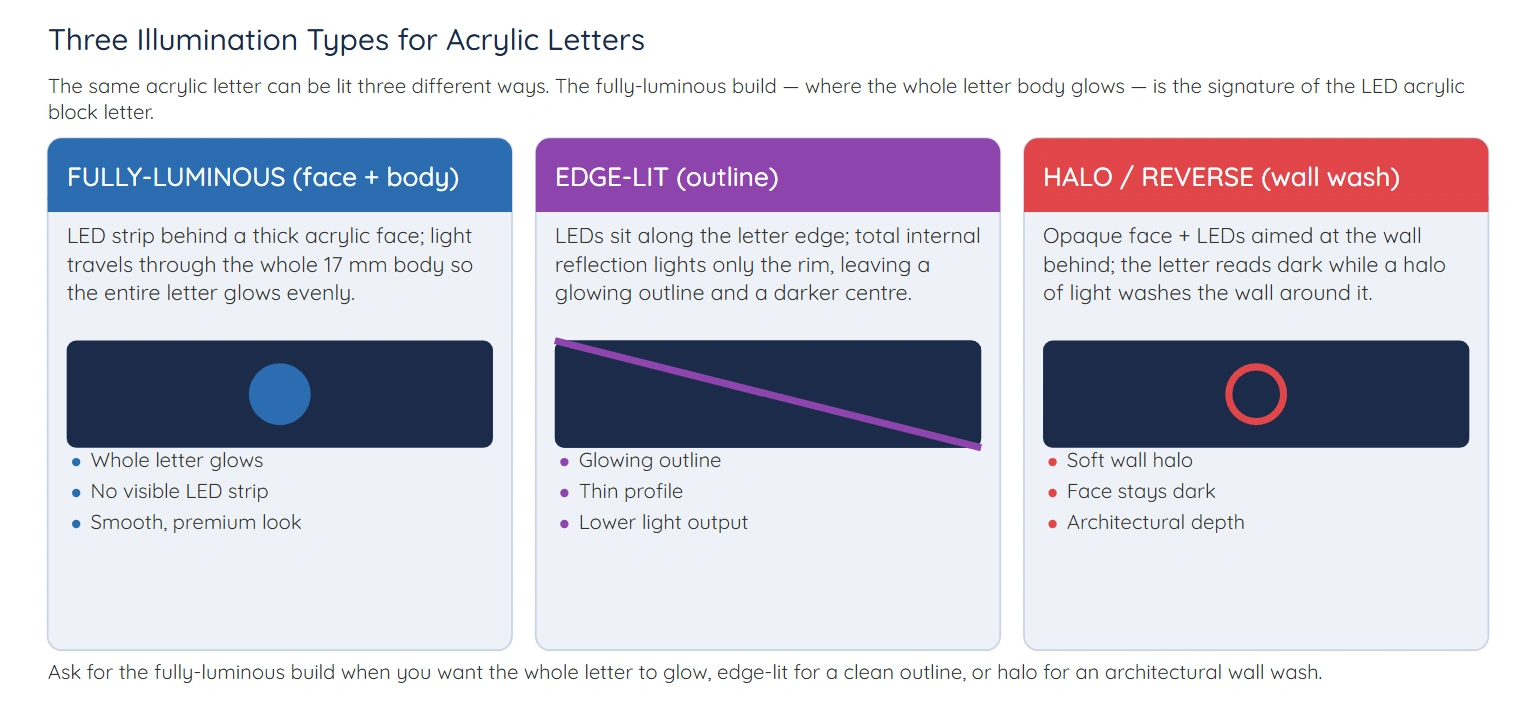

The Three Illumination Types — Fully-Luminous vs Edge-Lit vs Halo
The same acrylic letter can be lit three different ways. The fully-luminous build — where the whole letter body glows — is the signature of the LED acrylic block letter, and it is the one this page specifies:
Three ways to light an acrylic letter. The fully-luminous build (left) diffuses LED light through the entire 17 mm body so the whole letter glows; edge-lit lights only the rim; halo washes the wall behind.
| Illumination | How it works | Visual effect | Best for |
|---|---|---|---|
| Fully-luminous | LED strip behind a thick acrylic face; light travels through the full body | The entire letter glows evenly — no visible strip, no dark centre | Premium storefronts, office lobbies, brand walls |
| Edge-lit | LEDs along the letter edge; total internal reflection lights the rim | A glowing outline with a darker centre | Thin-profile, minimalist signage |
| Halo / reverse | Opaque face + LEDs aimed at the wall | The letter reads dark; a halo of light washes the wall | Architectural depth, luxury interiors |

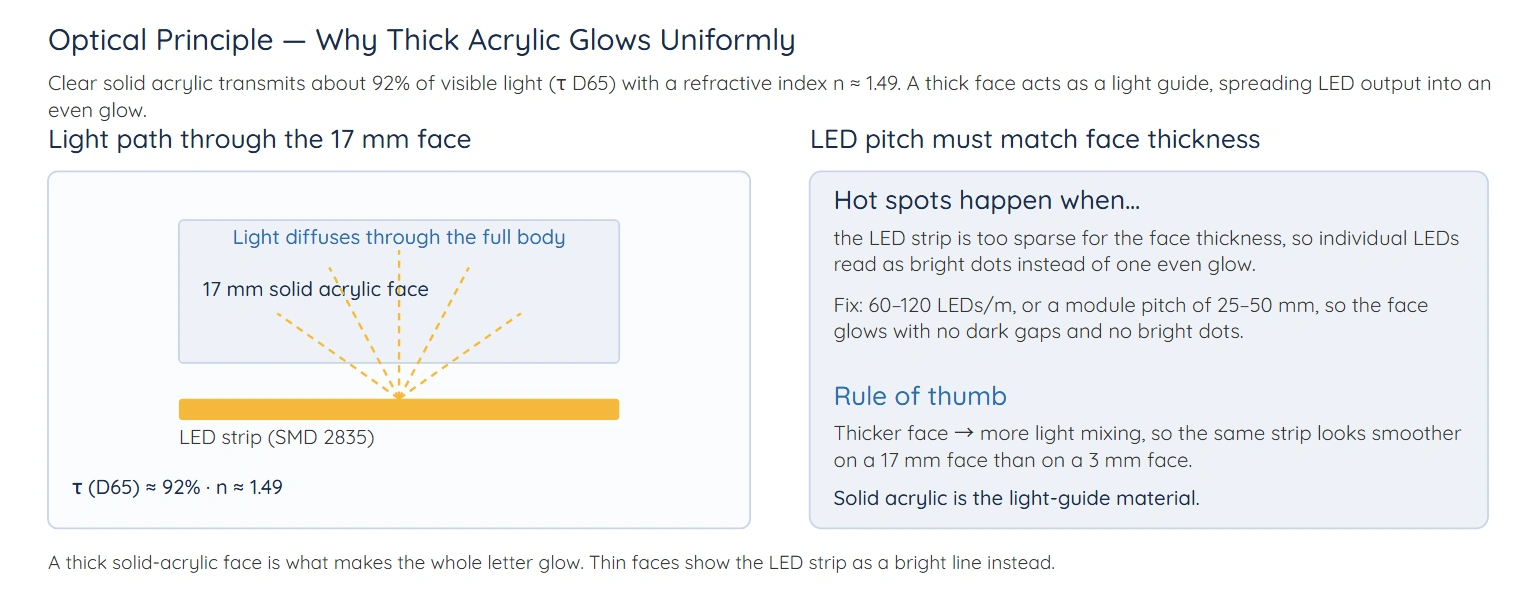

Optical Engineering — Why Thick Acrylic Glows Uniformly
Solid acrylic transmits ~92% of visible light (τ D65) at a refractive index n ≈ 1.49, so a thick face acts as a light guide. LED pitch must match the face thickness to avoid hot spots.
- Light transmission: solid acrylic (PMMA) transmits about 92% of visible light (τ D65), so very little output is lost through a 17 mm face.
- Refractive index: n ≈ 1.49 means light bends and spreads inside the acrylic, exiting evenly from the front rather than as a narrow beam.
- Hot-spot control: a strip that is too sparse for the face thickness reads as individual bright dots. We size the LED pitch (60–120 LEDs/m, or 25–50 mm modules) to the 17 mm face so it glows with no dark gaps and no bright dots.
- Thicker is smoother: the same LED strip looks smoother on a 17 mm solid face than on a thin 3 mm face, because the thicker face mixes the light more completely.

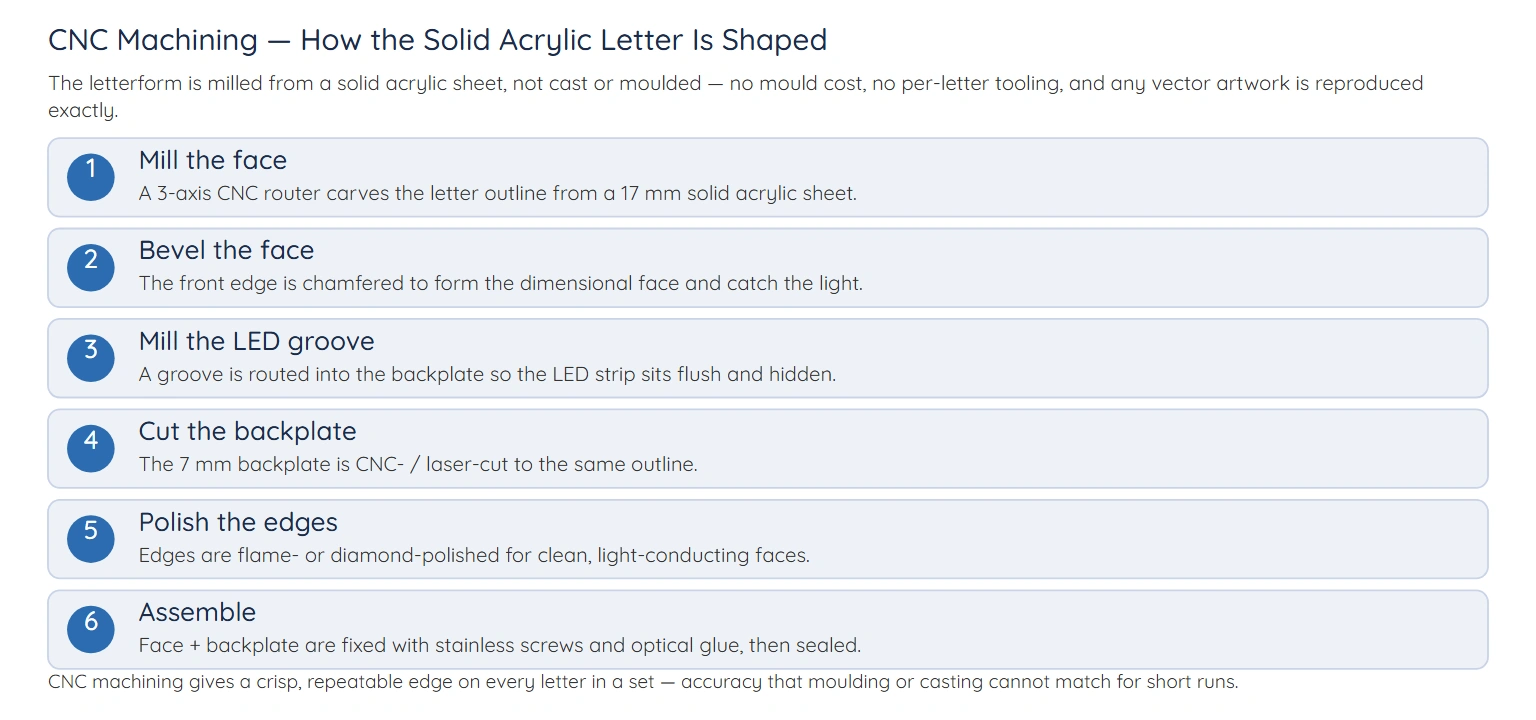

CNC Machining — How the Letter Is Shaped

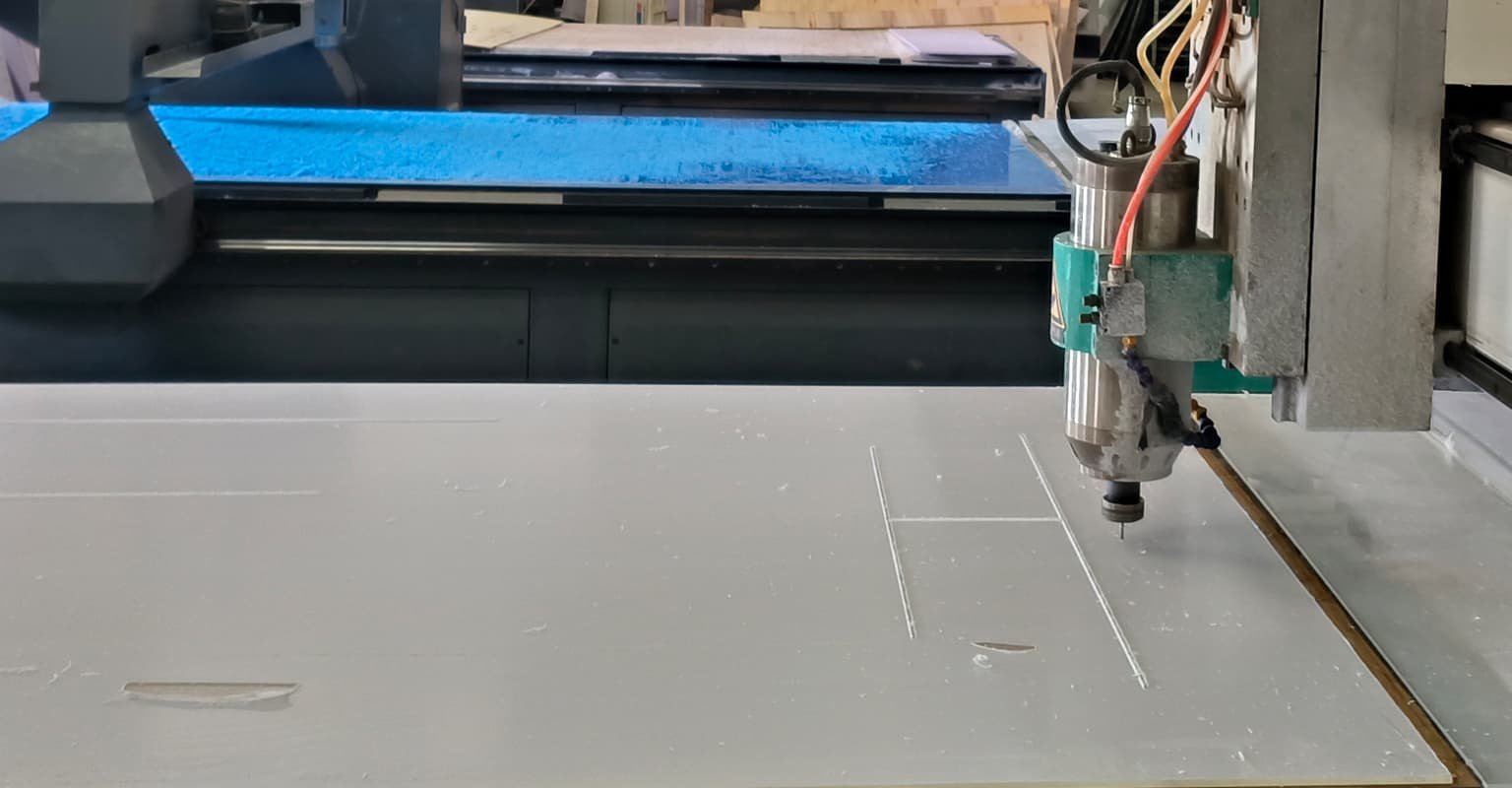

The letterform is CNC-milled from a solid acrylic sheet, not cast or moulded: a router carves the outline, bevels the face, mills the LED groove, then the edges are flame- or diamond-polished.
| Step | Operation | Result |
|---|---|---|
| 1 · Mill the face | 3-axis CNC router carves the letter outline from a solid acrylic sheet | 17 mm solid face with a crisp, repeatable contour |
| 2 · Bevel the face | The front edge is chamfered to shape the dimensional face | A clean dimensional profile that catches light |
| 3 · Mill the LED groove | A groove is routed into the backplate to seat the LED strip | The strip sits flush, hidden behind the face |
| 4 · Cut the backplate | The 7 mm backplate is CNC- / laser-cut to the same outline | A matching rear panel that carries the LED |
| 5 · Polish the edges | Edges are flame- or diamond-polished | Transparent, light-conducting edges with no tool marks |
| 6 · Assemble | Face + backplate fixed with screws and optical glue | A sealed, serviceable two-part letter |
Because the letter is CNC-carved from solid acrylic rather than cast or moulded, there is no mould cost and no per-letter tooling — any vector artwork (.ai, .eps, .cdr, .svg) is milled exactly and repeatably across a multi-letter sign. We use high-clarity, UV-stable solid acrylic (PMMA) sheet from PLEXIGLAS® (Röhm) and ACRYLITE® so the face stays clear and does not yellow.
LED & Light-Source Engineering
| Parameter | Specification | Why it matters |
|---|---|---|
| LED type | SMD 2835 / 5050 | Compact, high-efficacy chips suited to the thin 7 mm backplate cavity |
| Colour temperature | 2700 K (warm) / 4000 K / 6500 K (cool) / RGB | Match the brand or ambient lighting; RGB for colour-changing |
| CRI | ≥ 80 (90 on request) | Colour rendering for food, cosmetic and fashion brands |
| LED density | 60–120 LEDs/m; 25–50 mm module pitch | Sized to the 17 mm face to remove hot spots |
| Operating voltage | 12 V DC (Class 2 supply), 110–240 V AC input | Safe low-voltage; standard sign-industry power |
| Rated life | ≥ 50,000 hours (L70) | Decade-plus service before noticeable lumen depreciation |
- Drivers: we standardise on Mean Well or equivalent certified drivers, sized with 20–30% headroom.
- Uniformity: LED pitch is documented per letter depth so the face glows evenly with no banding or bright dots.

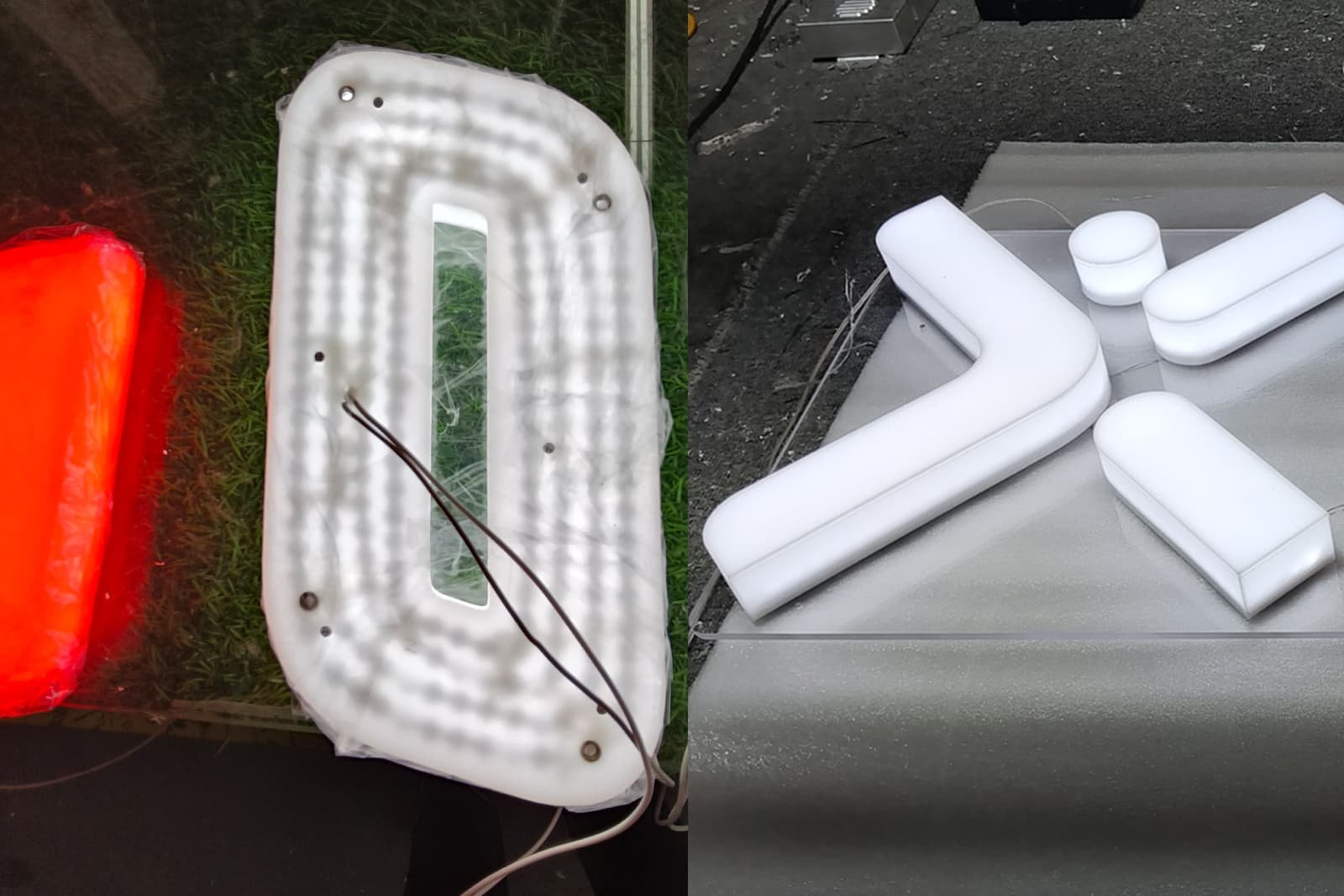

- Servicing: the backplate is removable, so an LED strip can be replaced in the field without damaging the face.

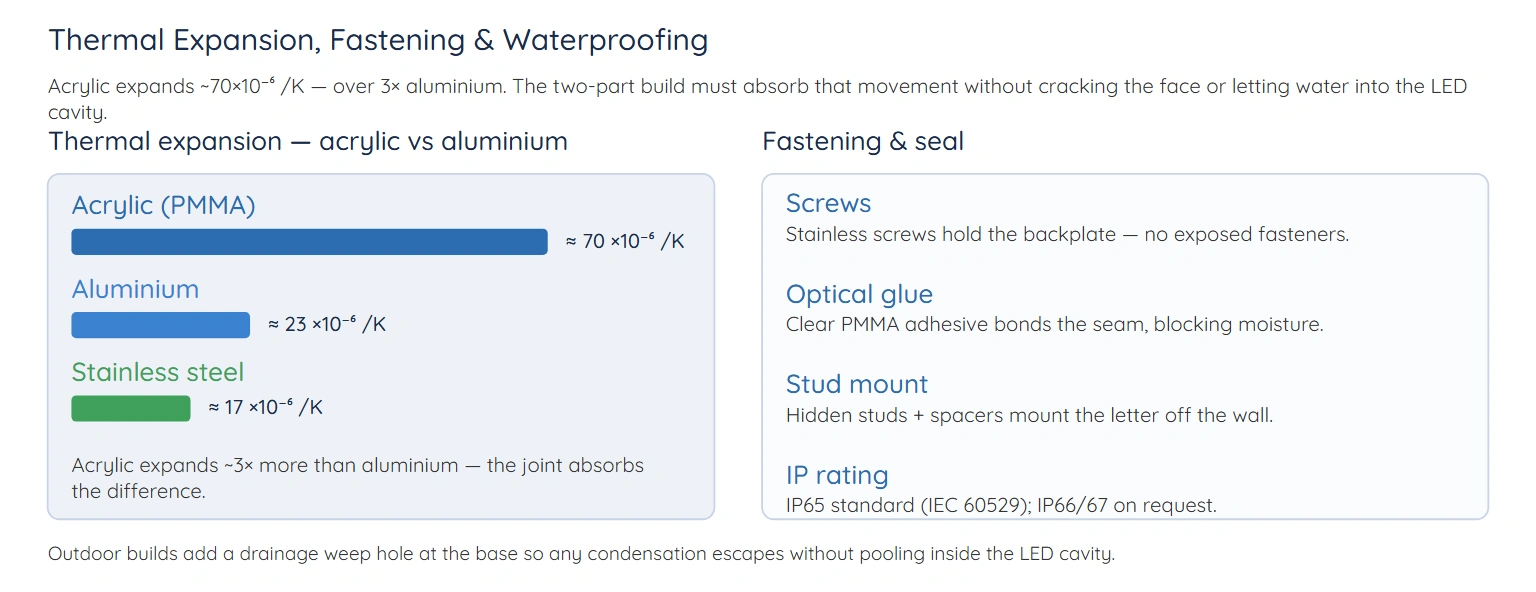

Thermal, Fastening & Waterproofing
Acrylic expands ~3× more than aluminium with temperature. The screw-and-glue joint absorbs that movement, and a sealed backplate plus a weep hole keeps water out of the LED cavity.
- Thermal expansion: acrylic has a CTE of ≈70×10−6/K — roughly three times aluminium. The two-part build and the glue joint let the face expand and contract without cracking or stressing the studs.
- Fastening: stainless screws hold the backplate; optical glue bonds the seam. No fasteners are visible on the face.
- Waterproofing: IP65 as standard, following IEC 60529; IP66/IP67 on request. Outdoor builds add a drainage weep hole at the base so condensation escapes without pooling.
Technical Specifications & Product Parameters
| Parameter | Specification |
|---|---|
| Front face | 17 mm solid acrylic (PMMA) |
| Backplate | 7 mm acrylic (carries the LED strip) |
| Fastening | Stainless screws + optical glue |
| LED type | SMD 2835 / 5050 waterproof strip |
| LED colour | Warm white / neutral / cool white / RGB / RGBW |
| LED density | 60–120 LEDs/m; 25–50 mm module pitch |
| Operating voltage | 12 V DC; 110–240 V AC input, Class 2 supply |
| Letter height | 50–1200 mm (2–48”+) |
| Letter depth | 24 mm nominal (17 mm face + 7 mm back); custom depth on request |
| Edge finish | Flame- or diamond-polished; painted edges optional |
| IP rating | IP65 standard; IP66/IP67 on request (IEC 60529) |
| Working temperature | −20 °C to +60 °C |
| Rated life | ≥ 50,000 hours (LED, L70) |
| Warranty | 2 years LED · 5 years acrylic · 3 years power supply |
| Certifications | CE, RoHS, UL 48 (electric signs) / UL 879 (components), ISO 9001 |
| MOQ / lead time | 1 piece · 3–7 working days |
Every letter is built to order from your vector artwork (.ai, .eps, .cdr, .svg). A 1:1 drilling template, wiring diagram and power-supply calculation ship with each order.
Applications by Industry
- Retail & storefronts — premium, fully-luminous brand names that read clearly by day and glow evenly at night
- Office & corporate lobbies — reception and company-name letters with a clean, self-glowing architectural look
- Hotels & hospitality — wayfinding, restaurant names and amenity signage in a refined acrylic finish
- Medical & professional — clinic and practice names with a clean, hygienic, easy-to-service build
- Exhibitions & events — lightweight, quick-to-mount brand letters for booths and pop-ups
- Franchise & chain rollouts — repeatable, MOQ-friendly letters for multi-site brand consistency
Customization Options
- Any font, logo or shape reproduced from vector artwork (.ai / .eps / .cdr / .svg)
- Face in clear, opal white, frosted, mirrored or any pigmented / RAL / Pantone colour
- Fully-luminous, edge-lit or halo illumination; white, warm, cool, RGB or RGBW LED
- Letter height 50–1200 mm; depth customised beyond the 17 mm + 7 mm standard
- Stud, spacer, adhesive, backer-panel or rail mounting; painted or polished edges
Total Cost of Ownership vs Alternatives

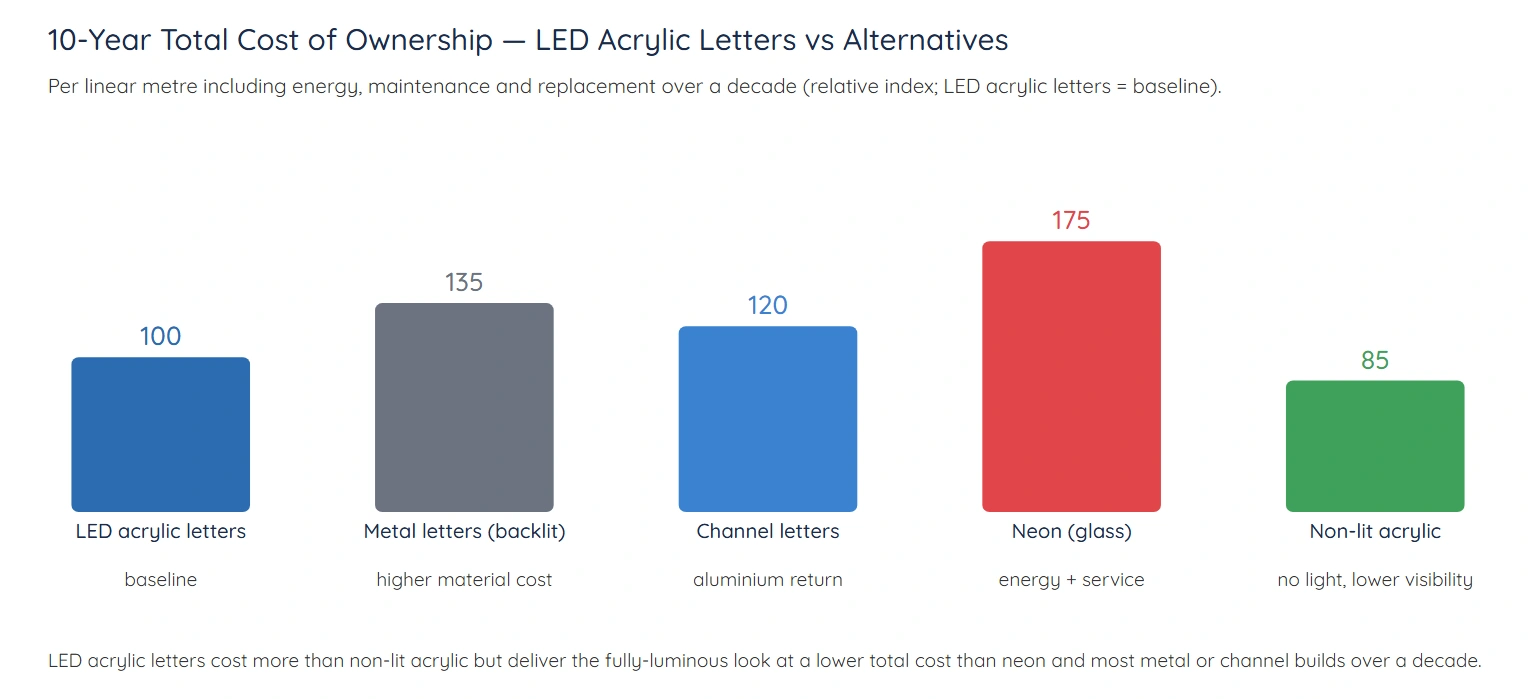

Ten-year total cost of ownership per linear metre. LED acrylic letters undercut neon and most metal or channel builds while delivering the fully-luminous look.
| Alternative | 10-yr cost (relative) | Key trade-off |
|---|---|---|
| LED acrylic letters | 100 (baseline) | Fully-luminous, low energy, easy to service |
| Non-lit acrylic letters | ~85 | No light — invisible at night |
| Channel letters (metal return) | ~120 | Rugged but heavier and more visible hardware |
| Metal letters (backlit) | ~135 | Premium look, higher material and fabrication cost |
| Neon (glass tube) | ~175 | High energy and frequent servicing |
Quality Control & Test Methodology
Every order passes a documented QC sequence before it is packed, so an LED acrylic letter that leaves the factory does not arrive with a hot spot, a dim edge or a leaking seam:
| Test | Standard / method | What it verifies |
|---|---|---|
| 24-hour burn-in | Continuous on at full brightness | Early LED / solder failures (infant mortality) |
| Brightness uniformity | Photometric scan, ±10% target | No hot spots or dim edges across the face |
| Colour consistency | LED lot binning (MacAdam / CCT) | Uniform colour across the whole sign |
| Water ingress | IEC 60529 (IP65/66) spray test | Sealed seam and drainage behaviour |
| Bond strength | Peel / pull test on the glue joint | Face and backplate stay fixed through thermal cycling |
| Power-supply safety | Class 2, UL-listed driver verification | Electrical safety and overload protection |
Failure Modes & Prevention (What to Watch For)
Solid-acrylic letters fail differently from channel letters. These are the failure modes we engineer against — and the questions to ask any supplier:
| Failure mode | Root cause | Prevention |
|---|---|---|
| Hot spots / bright dots on the face | Sparse LED strip for the face thickness | 60–120 LEDs/m or 25–50 mm module pitch sized to the 17 mm face |
| Yellowing / hazing | Low-grade acrylic, poor UV resistance | Solid acrylic (PLEXIGLAS® / ACRYLITE® sign-grade) |
| Water inside the LED cavity | Poor seam seal, no drainage | Optical glue seam + weep hole at the base; IP65+ |
| Face separates from the backplate | Glue failure from thermal cycling | Screws + glue joint; bond-strength pull test |
| Dim / dead LED section | LED failure or voltage drop | Quality SMD strip, correct driver, 24-hr burn-in |
| Edge crazing / cracking | Stress from rigid mounting on a hot wall | Expansion-tolerant joint + spacer mount |
MOQ, Pricing Factors & Lead Time
| Item | Value |
|---|---|
| MOQ | 1 piece (sample) · 10+ pieces (bulk, tiered pricing) |
| Production | 3–7 working days after artwork approval |
| Proof | Free lit video proof of your exact letters before shipping |
| Pricing factors | Letter height, depth, acrylic finish, LED colour, finish, IP rating, quantity |
| Shipping | Express (5–7 days), air (~10 days), sea (40–65 days); FOB / CIF / DDP available |
| Payment | T/T, L/C, Trade Assurance |
Pricing is calculated by letter height and depth, then adjusted by acrylic grade and LED colour. RGB and premium finishes add a premium over single-colour — request a like-for-like quote rather than comparing list prices across suppliers.
Production Process
- Design & proof — vector artwork converted to a cut file; dimensioned drawing and colour confirmed
- Cut & machine — the 17 mm face and 7 mm backplate laser/CNC-cut to the letter outline; the LED groove machined into the backplate
- Polish & finish — edges flame- or diamond-polished; faces left clear, frosted or pigmented

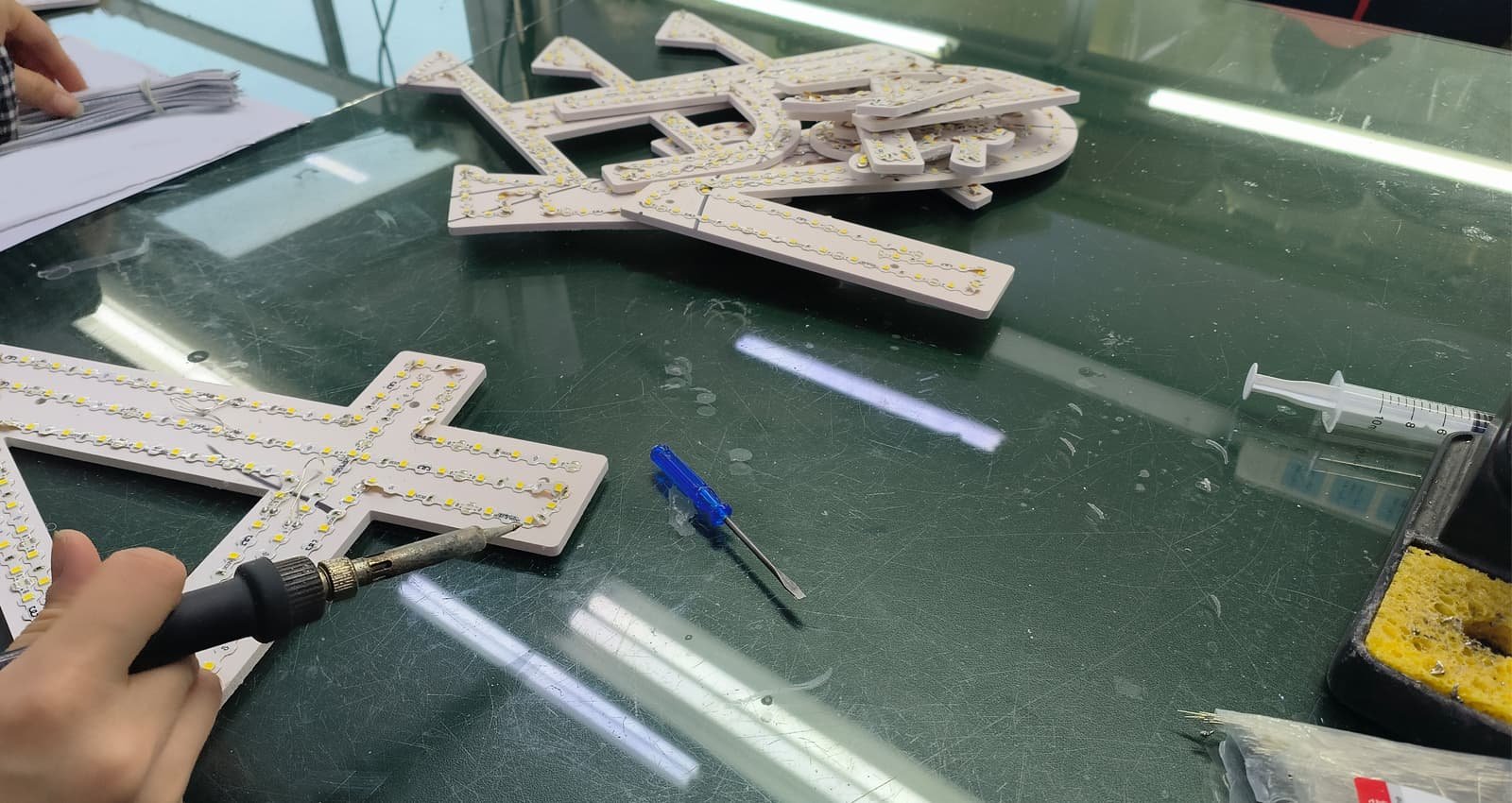

- LED assembly — SMD strip mounted on the backplate to the engineered pitch; driver sized and wired
- Bond & seal — the face and backplate fixed with screws and optical glue; seam sealed
- QC & burn-in — 24-hour burn-in, uniformity, waterproof and bond-strength checks

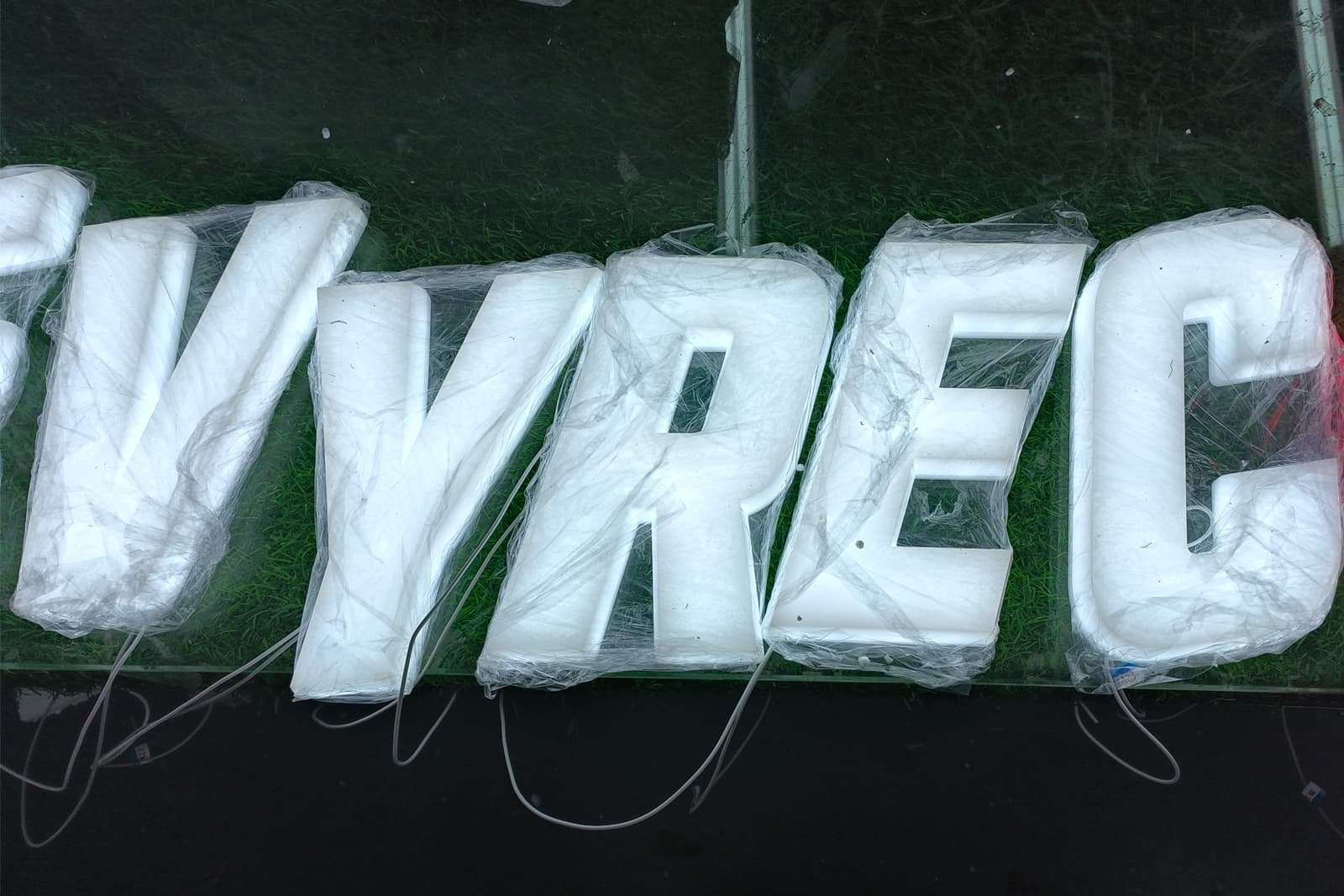

- Pack & ship — foam + bubble wrap, wooden crate, 1:1 drilling template and wiring diagram included
Supplier Evaluation Checklist (Procurement)
Use this 16-point checklist when comparing LED acrylic letter suppliers — most of it cannot be read off a spec sheet and must be asked for directly:
- Do you CNC-carve the letters from solid acrylic sheet, and can you name the sheet brand (e.g. PLEXIGLAS® / ACRYLITE®)?
- What face and backplate thickness do you build to, and is the LED strip mounted on the backplate?
- How do you fix the face to the backplate — screws, glue, or both?
- What LED density do you use for a given face thickness, and do you document the pitch?
- Can you supply warm white, cool white, RGB and RGBW, and match a specific Kelvin?
- What is the LED rated life (L70) and the driver brand?
- What IP rating do you certify to (IEC 60529), and where is the weep hole?
- Do you run a 24-hour burn-in and a brightness-uniformity test before shipping?
- Can you show a lit photo or video proof of my exact letters before shipping?
- What UL / CE / RoHS certifications do the LED modules and power supplies carry?
- What is the warranty split (LED vs acrylic vs power supply)?
- What are your MOQ and lead time for a sample versus a bulk order?
- Do you provide a 1:1 drilling template and wiring diagram with the order?
- How are letters packed to survive sea freight without edge damage?
- Can you handle DDP shipping and after-sales support for dead LED sections?
- What is the expansion allowance for outdoor installations in hot climates?
Market Intelligence — Why Illuminated Signage Is Growing
The global signage market was valued at USD 37.8 billion in 2025 and is projected to reach USD 60.06 billion by 2036, growing at a 4.3% CAGR — with LED technology already accounting for about 60% of the technology segment (Future Market Insights).
Acrylic itself is growing in step: the polymethyl methacrylate (PMMA) market was valued at USD 5.48 billion in 2026 and is projected to reach USD 6.48 billion by 2031, a 3.4% CAGR, driven by signage, automotive and construction demand (MarketsandMarkets).
The commercial takeaway for buyers: the fully-luminous acrylic letter is moving from a premium niche to a standard storefront and lobby spec. Resellers who can engineer it properly — solid acrylic, correct LED pitch, a sealed two-part build — capture the margin that retailers and thin-content suppliers leave on the table.
Frequently Asked Questions
What is the difference between LED acrylic letters and channel letters?
A channel letter is a hollow shell — a thin acrylic face over an aluminium return — with LED modules inside. An LED acrylic letter is a solid, monolithic letterform where the acrylic itself is the letter and the LED strip is sealed inside. In the fully-luminous build, a 17 mm solid-acrylic face over a 7 mm LED backplate makes the whole letter glow evenly, with no visible metal return and no dark centre.
What does “fully-luminous” mean?
Fully-luminous (whole-body glow) means the LED light travels through the entire thickness of the acrylic letter, so the whole letter glows evenly rather than lighting only the face or only the edge. It is achieved by using a thick solid-acrylic face that acts as a light guide, with the LED strip mounted on the backplate behind it.
What face and backplate thickness do you build to?
Our standard LED acrylic letter uses a 17 mm solid-acrylic front face and a 7 mm acrylic backplate that carries the LED strip. The two halves are fixed together with stainless screws and optical glue. Custom thicknesses are available on request.
Are LED acrylic letters suitable for outdoor use?
Yes, with the right sealing. We build to IP65 as standard, following IEC 60529, with IP66/IP67 on request. Outdoor letters use a sealed seam, a drainage weep hole at the base, and UV-stable solid acrylic (PLEXIGLAS® / ACRYLITE®) so the face does not yellow.
How do you prevent hot spots and dark areas on the face?
Hot spots happen when the LED strip is too sparse for the face thickness. We size the LED density (60–120 LEDs/m, or a 25–50 mm module pitch) to the 17 mm face so the light mixes evenly with no bright dots and no dark gaps, and we verify it with a brightness-uniformity test before shipping.
What is the minimum order quantity and lead time?
The minimum order is 1 piece for samples, with bulk orders of 10+ pieces at tiered pricing. Production is 3–7 working days after artwork approval, and we provide a free dimensioned engineering drawing and written quote within 24 hours. Shipping is express (5–7 days), air (~10 days) or sea (40–65 days), with DDP available.
Can you match my exact font, logo and brand colours?
Yes. We reproduce any vector logo or typeface (.ai, .eps, .cdr, .svg) and match the face to clear, opal, frosted, mirrored or any RAL / Pantone colour. LED colour can be warm white, cool white, RGB or RGBW to match your brand.
What certifications and quality checks do your letters carry?
LED modules and power supplies are CE, RoHS and UL 48 / UL 879 certified, and the factory runs an ISO 9001:2015 quality system. Every order passes a 24-hour burn-in, brightness-uniformity, water-ingress and bond-strength check before packing.
Key Takeaways
- Fully-luminous is a build, not a buzzword. It means the whole 17 mm acrylic body glows — the signature of the premium LED acrylic block letter.
- The letters are CNC-carved, not cast or moulded — no mould cost, any vector artwork milled exactly, and repeatable across a multi-letter sign.
- LED pitch must match the face thickness, or the sign shows hot spots instead of an even glow.
- The screw-and-glue joint does real work — it holds the two halves and absorbs acrylic’s thermal expansion.
- LED acrylic letters undercut neon and most metal builds over a decade while delivering the fully-luminous look.
Get a Free Engineering Drawing & Quote
Tell us your artwork, letter height, acrylic finish and LED colour — we will return a dimensioned drawing, a lit video proof and a written quote within 24 hours. MOQ is 1 piece, production is 3–7 working days, and we ship worldwide by express, air or sea.
Ready to Improve Your Advertising Sign Supply Chain?
Whether you are looking for a new sign supplier, a backup manufacturer, or a trusted sourcing partner, We are ready to support your business.
